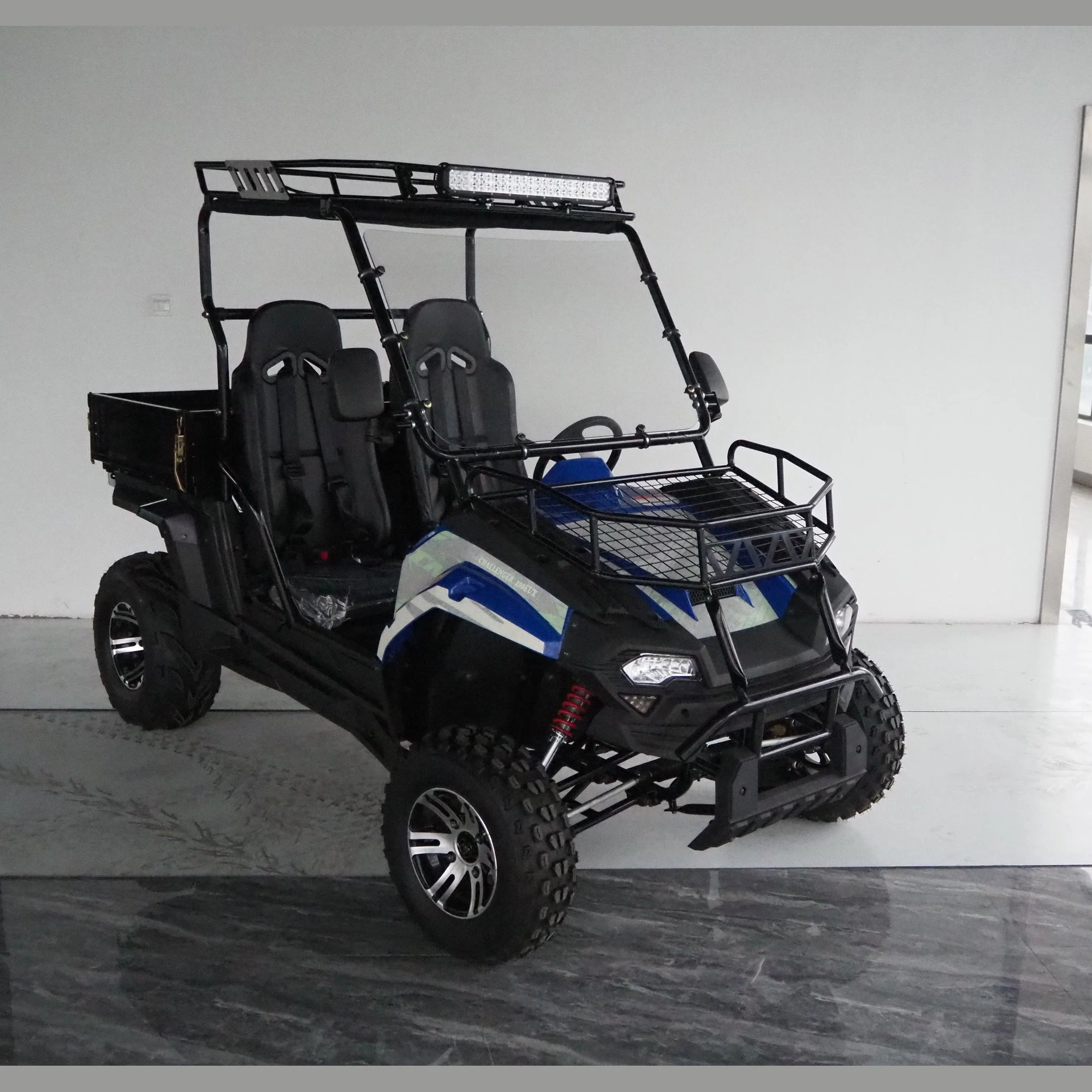

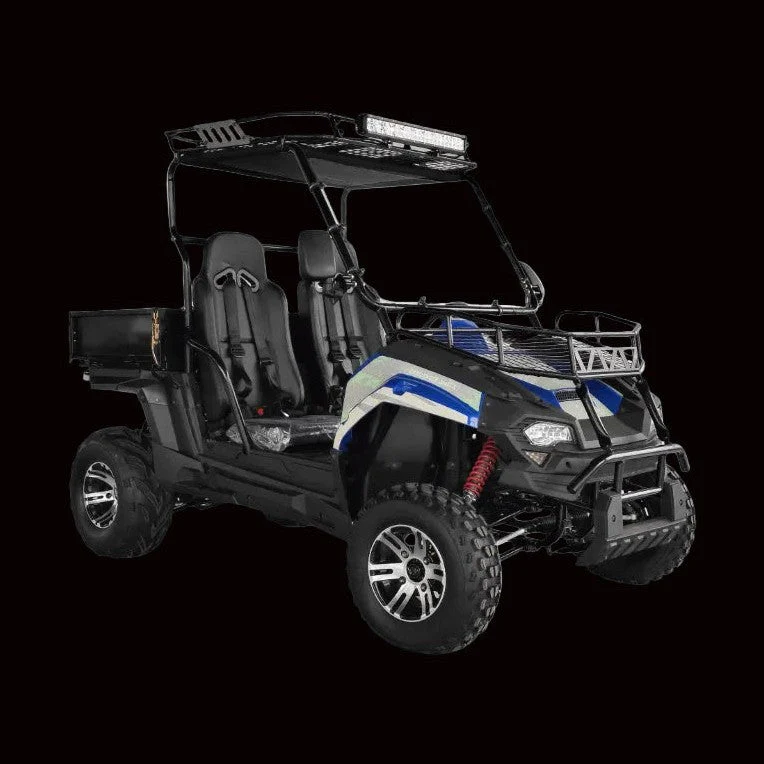

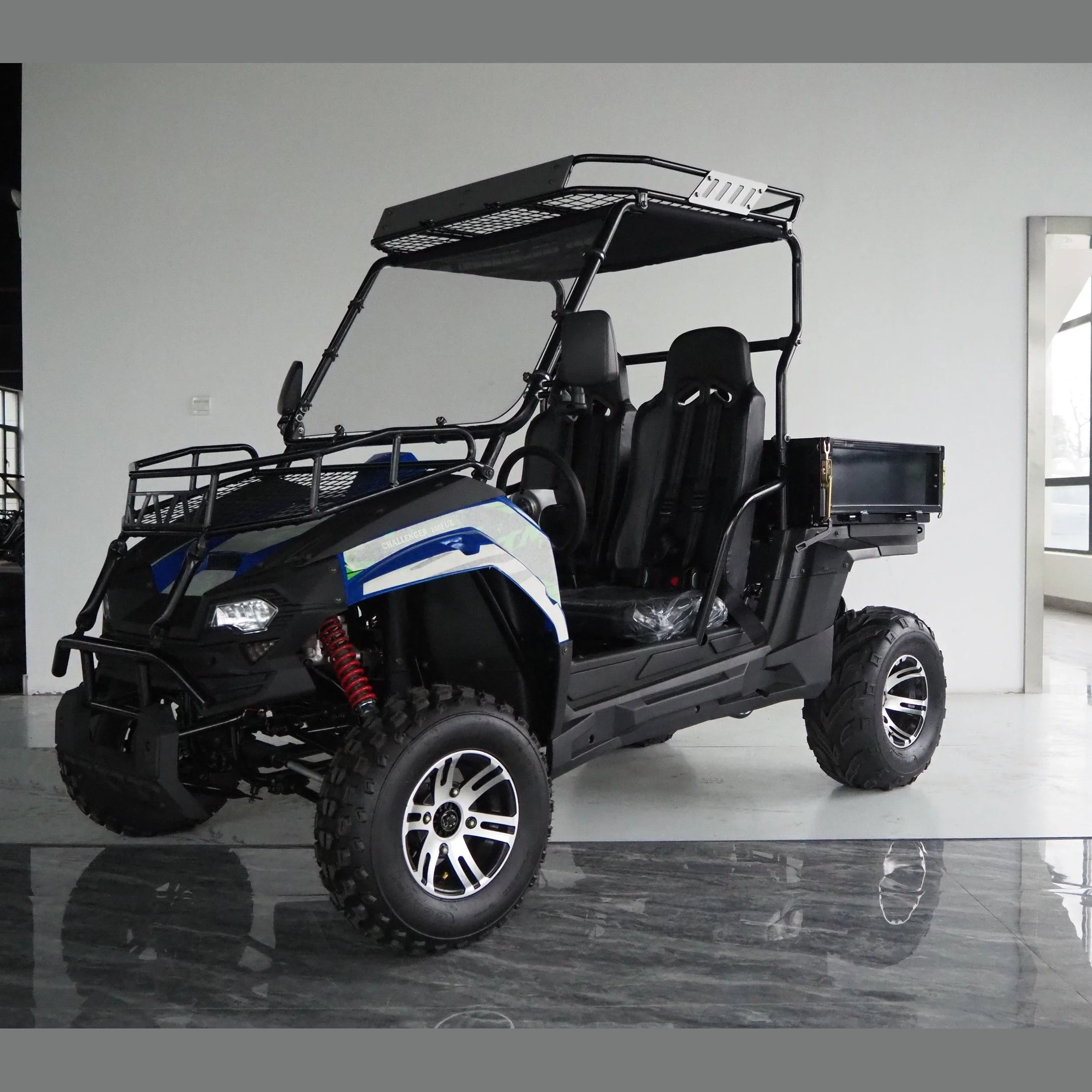

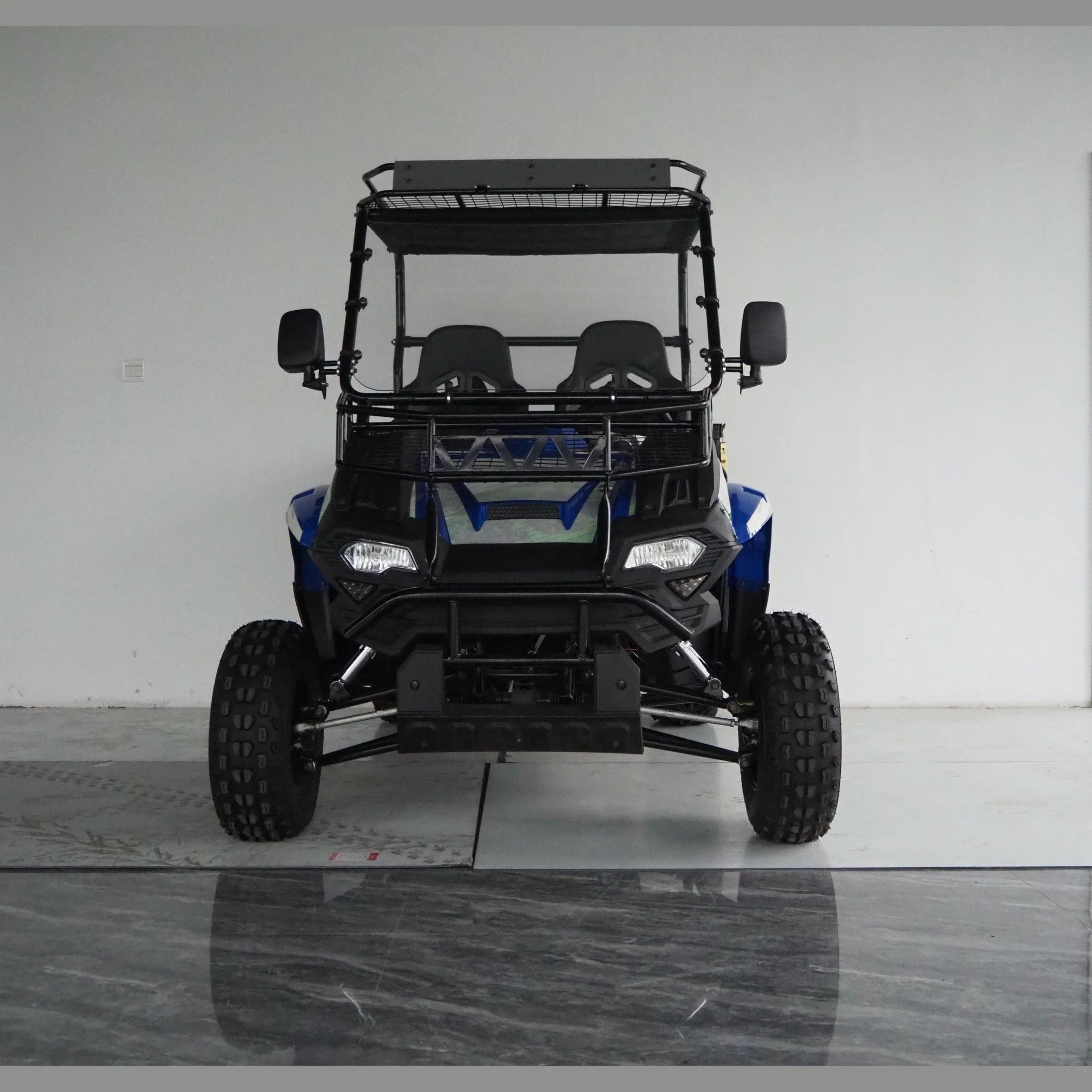

The TrailMaster Challenger 200EUX is a powerhouse UTV with an 11.1 hp, 169cc GY6 EFI engine and internal FNR transmission. This new model features a large 27.5”x45.3”x93.5” dump bed with a 165 lb max load capacity, flipping down 32 degrees for easy unloading. With a new gear ratio setup, it delivers maximum low-end torque and reaches a top speed of 38 mph. The front independent A-arm suspension and rear swing arm with shock absorbers make tackling tough terrain a breeze.

Standard features include a large front cargo rack, steel and plastic front bumper, top cargo rack, aluminum wheels, windshield, top LED light bar, side rearview mirrors, speedometer, odometer, bikini sunshade top, turn signals, LED headlights, horn, trailer hitch, 12V outlet, adjustable steering wheel, and front and rear hydraulic disc brakes. Optional winch available. The TrailMaster Challenger 200EUX is fully loaded for fun and adventure!

Key Features:

• EFI operates under any weather and at any altitude
• Fully automatic with reverse, high performance 11.1 HP 168.9cc GY6 engine with
  internal F-N-R
• New gear ratio set up offers maximum low-end torque
• Large 27.5”X45.3”X93.5”dump bed with max load 165 lbs, flips down 32 degrees

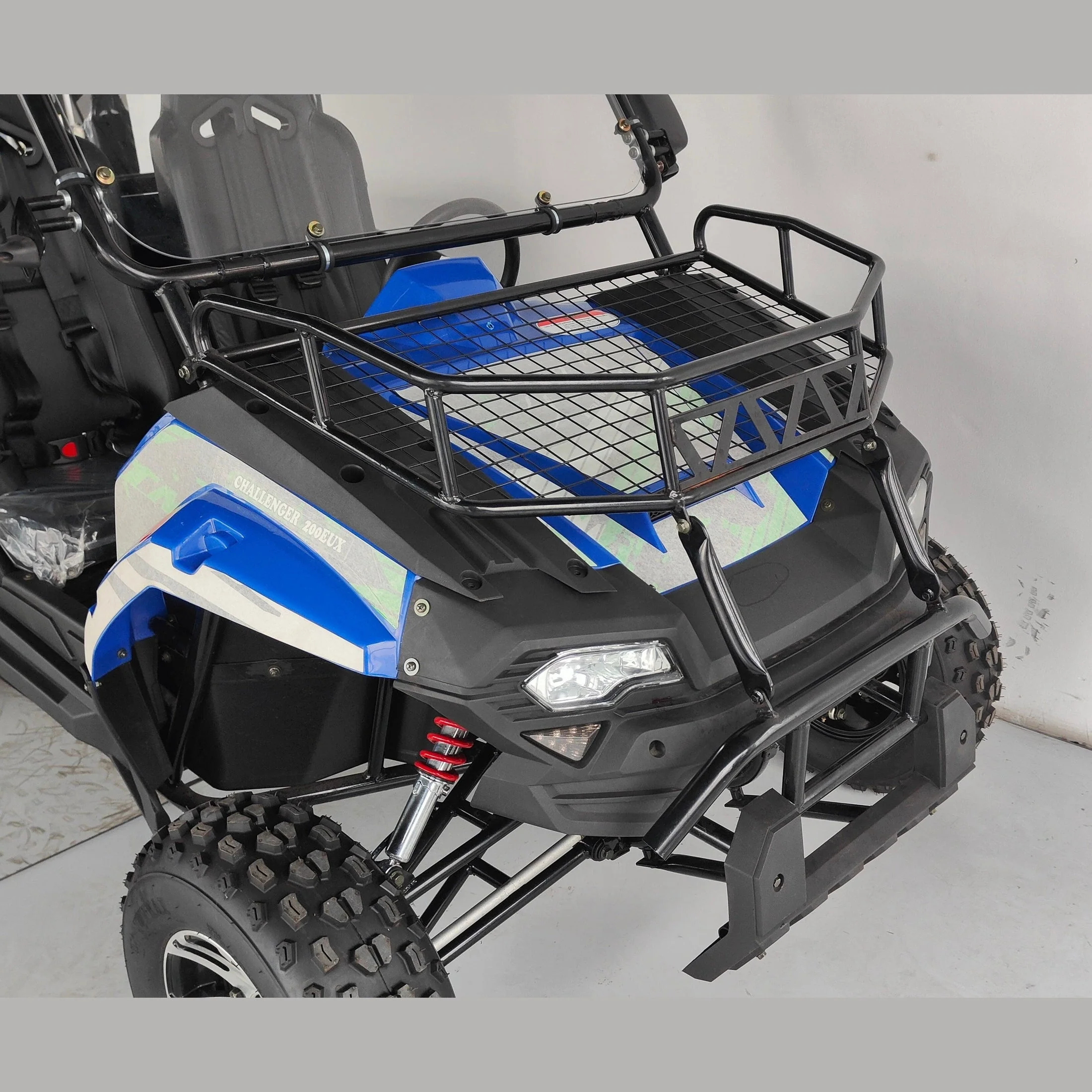

• Large front cargo rack
• Front steel and plastic bumper
• Large top cargo rack
• Aluminum wheels

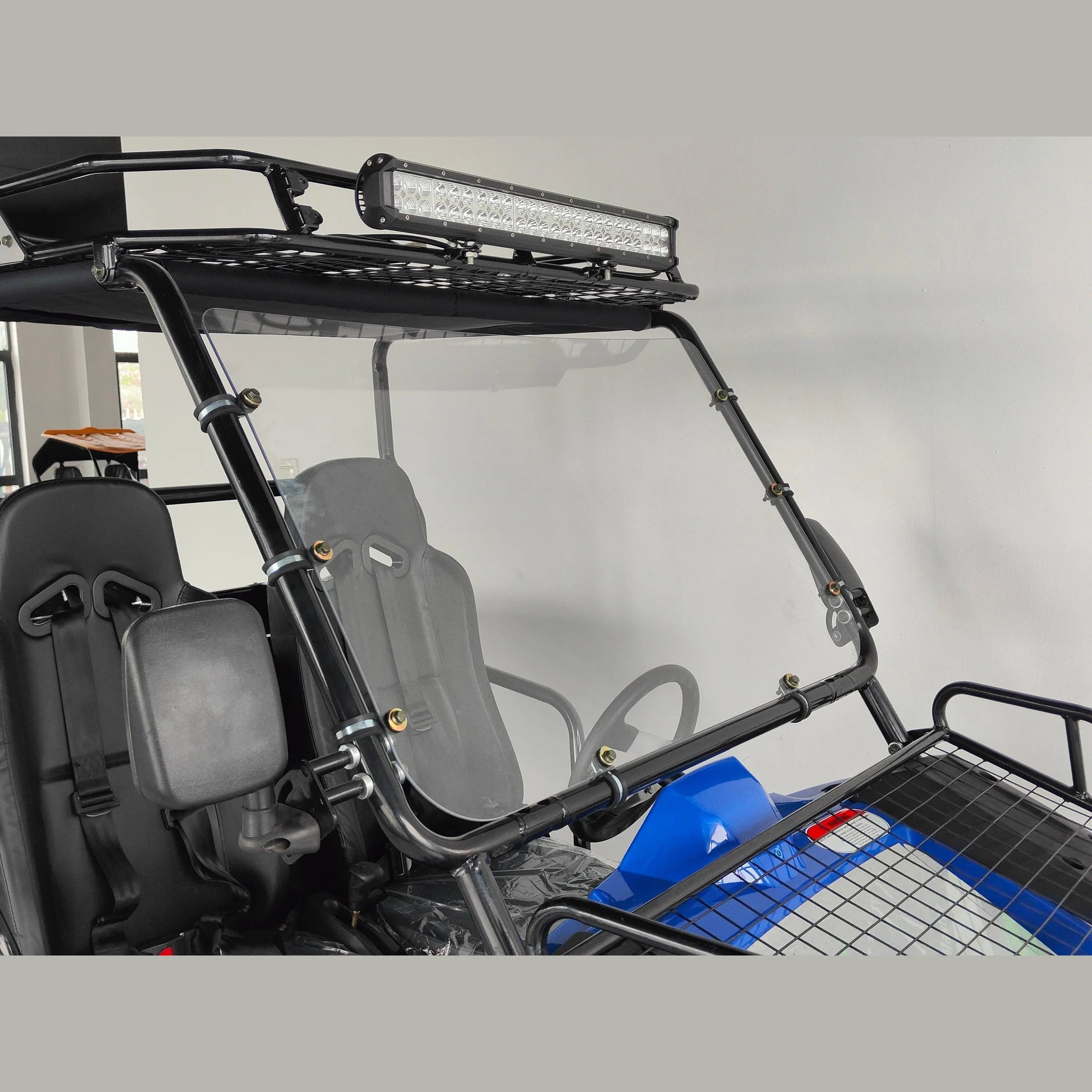

• Windshield
• Top LED light bar

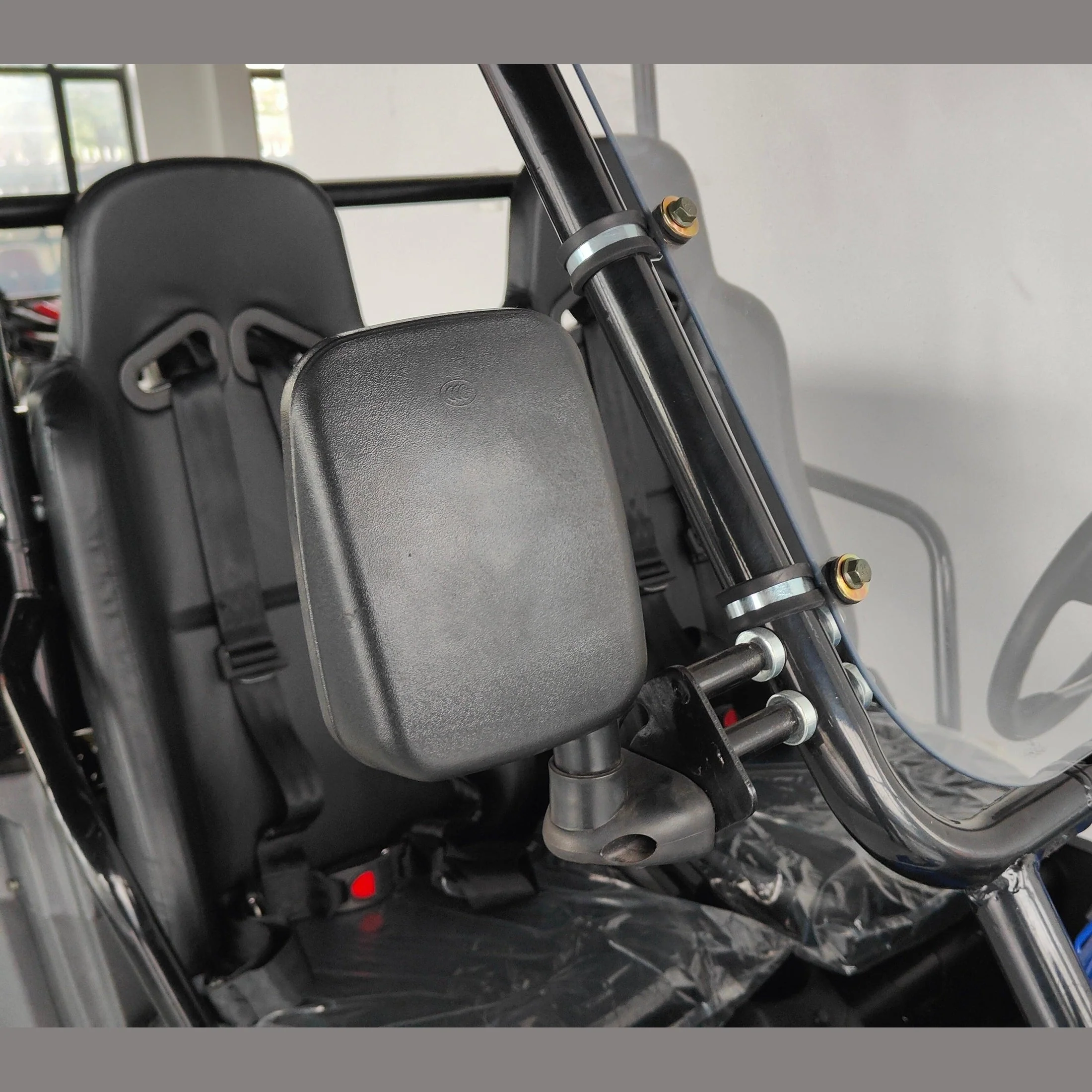

• Side rearview mirrors
• Exciting graphics
• Large tires with 22X7-10 in the front and 22X10-10 in the back
• Speedometer and odometer
• Bikini sunshade top
• Turn signals
• LED headlights
• Horn
• Trailer Hitch
• 12V outlet
• Top speed 38M/H
• Adjustable steering wheel
• Age group: 16 & older
• Large driving cabin fits person up to 6’2
• Electric start with kill switch
• Four-point safety seatbelt
• Individual sporting seats
• Adjustable driver seat: pedal to seat back adjustable from 38” to 43”
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• Parking brake
• Optional winch


SPECIFICATIONS

Model Number:	Challenger 200EUX
Certification:	EPA certificated
Engine Type:	4-stroke, single cylinder, air cooled (EFI)
Displacement:	168.9cc
Max HP:	11.1hp/7500 RPM
Max torque:	11N.m@5000 RPM
Bore x stroke:	2.4x2.28 inches
Max speed:	33 mph
Climbing ability:	20-25 degrees
Ignition:	CDI
Starting System:	Electric
Battery:	12V 10Ah
Engine oil:	SAE 15W-40
Clutch:	Automatic CTV with reverse
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension F / R:	Independent Dual A-arm / Double Oil Damped Shock
Brakes F / R:	Both hydraulic brakes, Disc
Tires F / R:	22x7-10 / 22x10-10
Fuel Capacity:	2 gal
Gross Weight:	840 lbs
Net Weight:	705 lbs
Max Load:	500 lbs
Dump bed max load:	165 lbs
Wheelbase:	72 inches
OA L x W x H:	100x53x63 inches
Packing size:	91X54X35 inches
Height to Seat:	23.6 inches
Min. Ground Clearance	6.3 inches
Dump bed dimension:	27.5X45.3X93.5

Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”
