DISCONTINUED

The TrailMaster iMini Electric Go Kart has been discontinued. Please go here to see our new- Trailmaster cheetah i6 electric go-kart

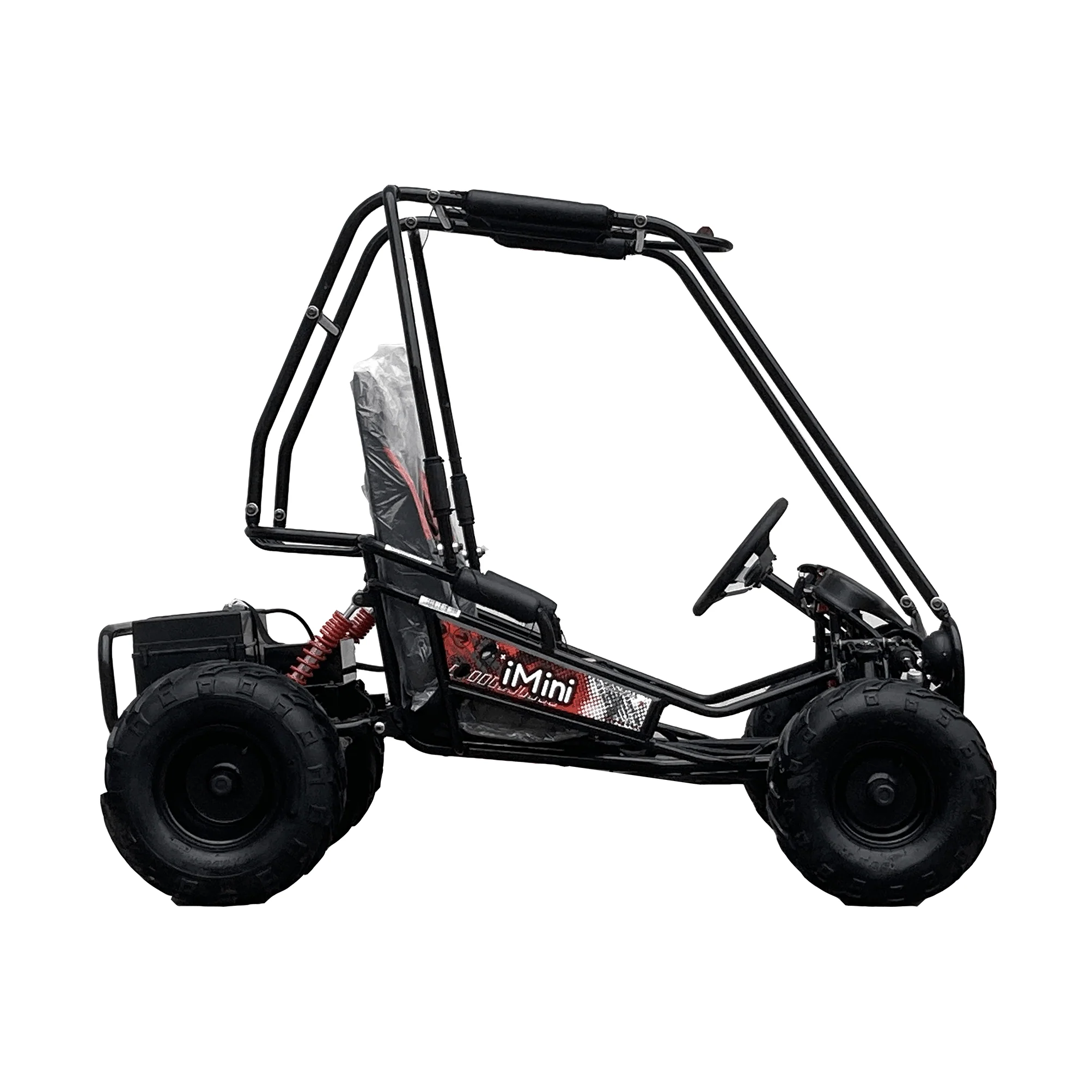

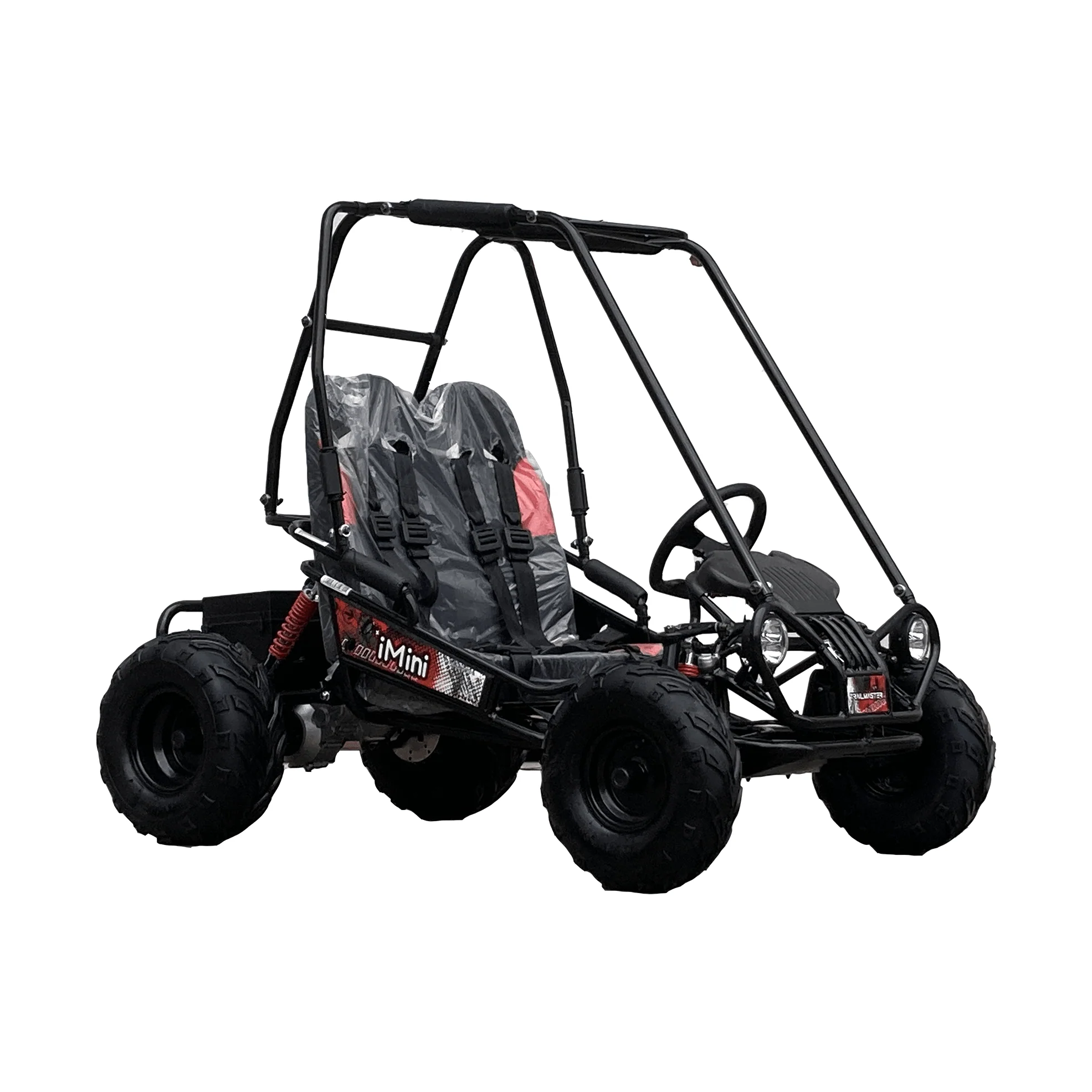

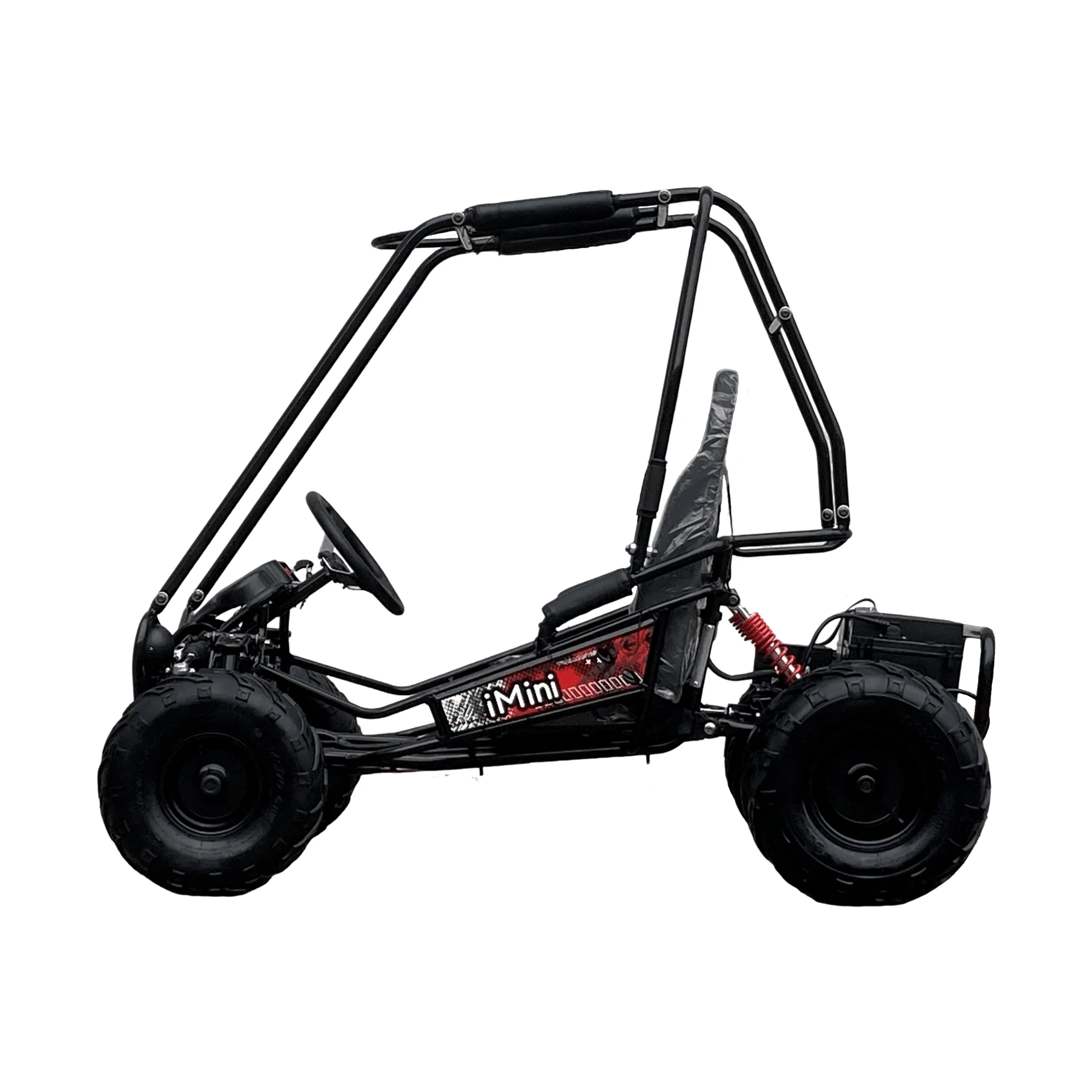

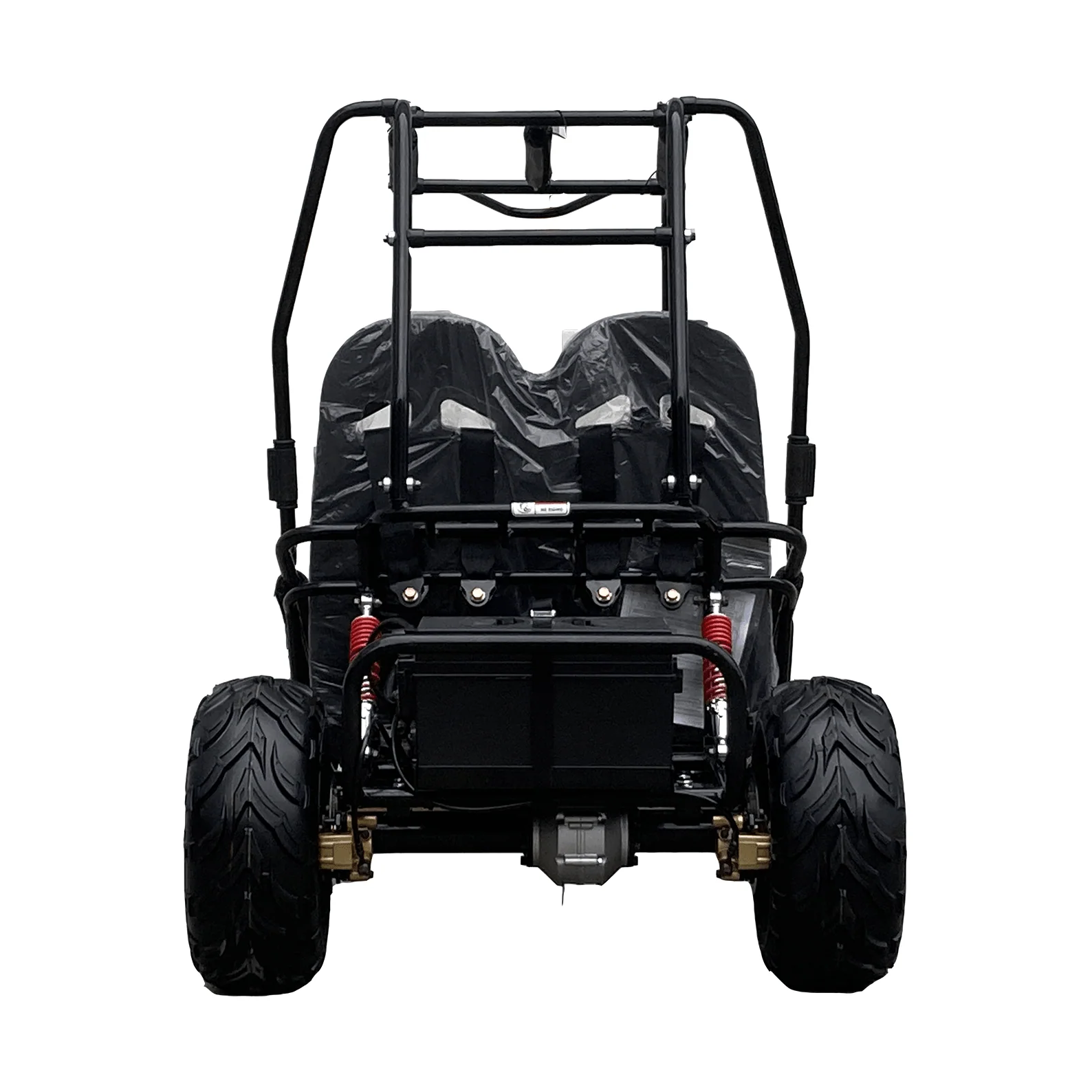

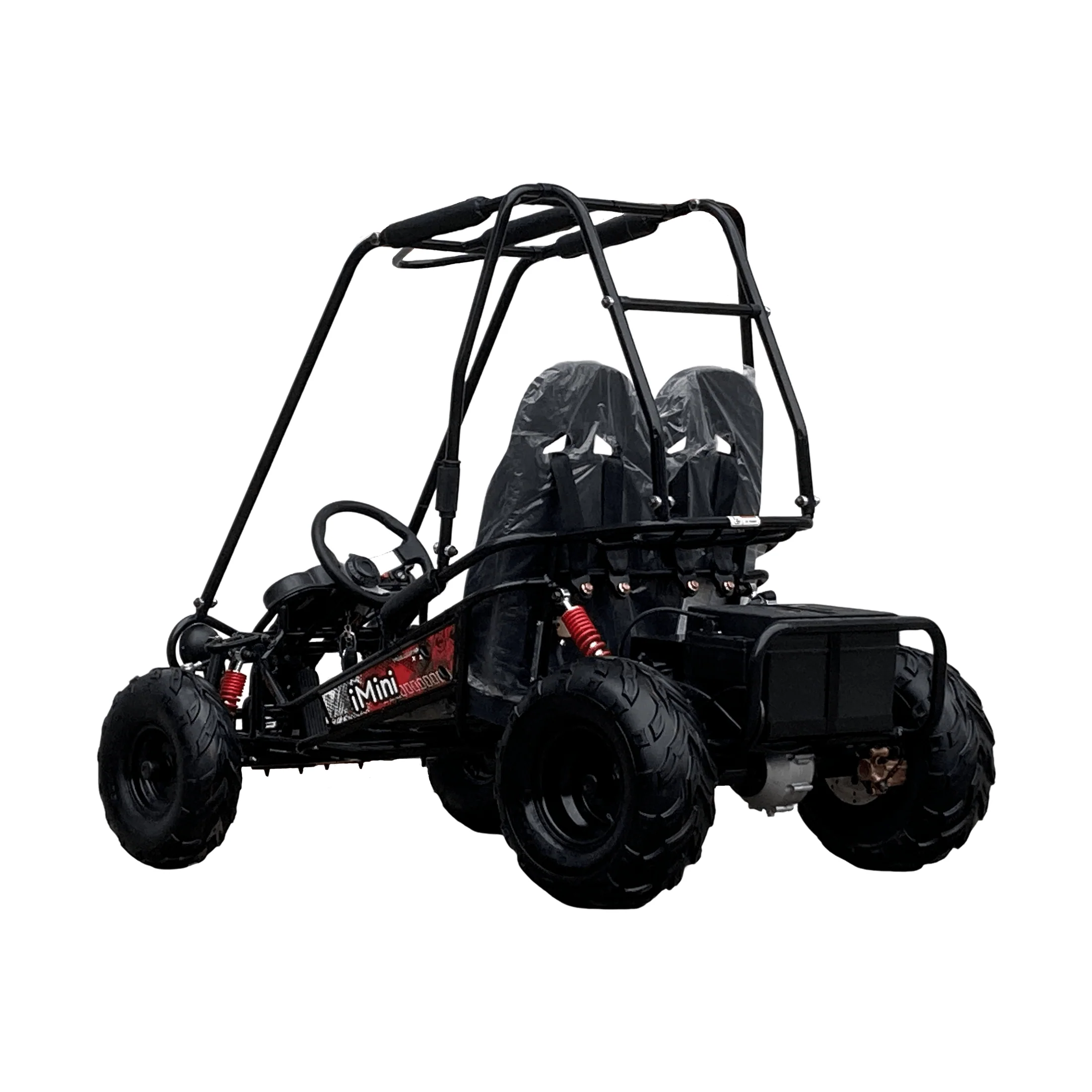

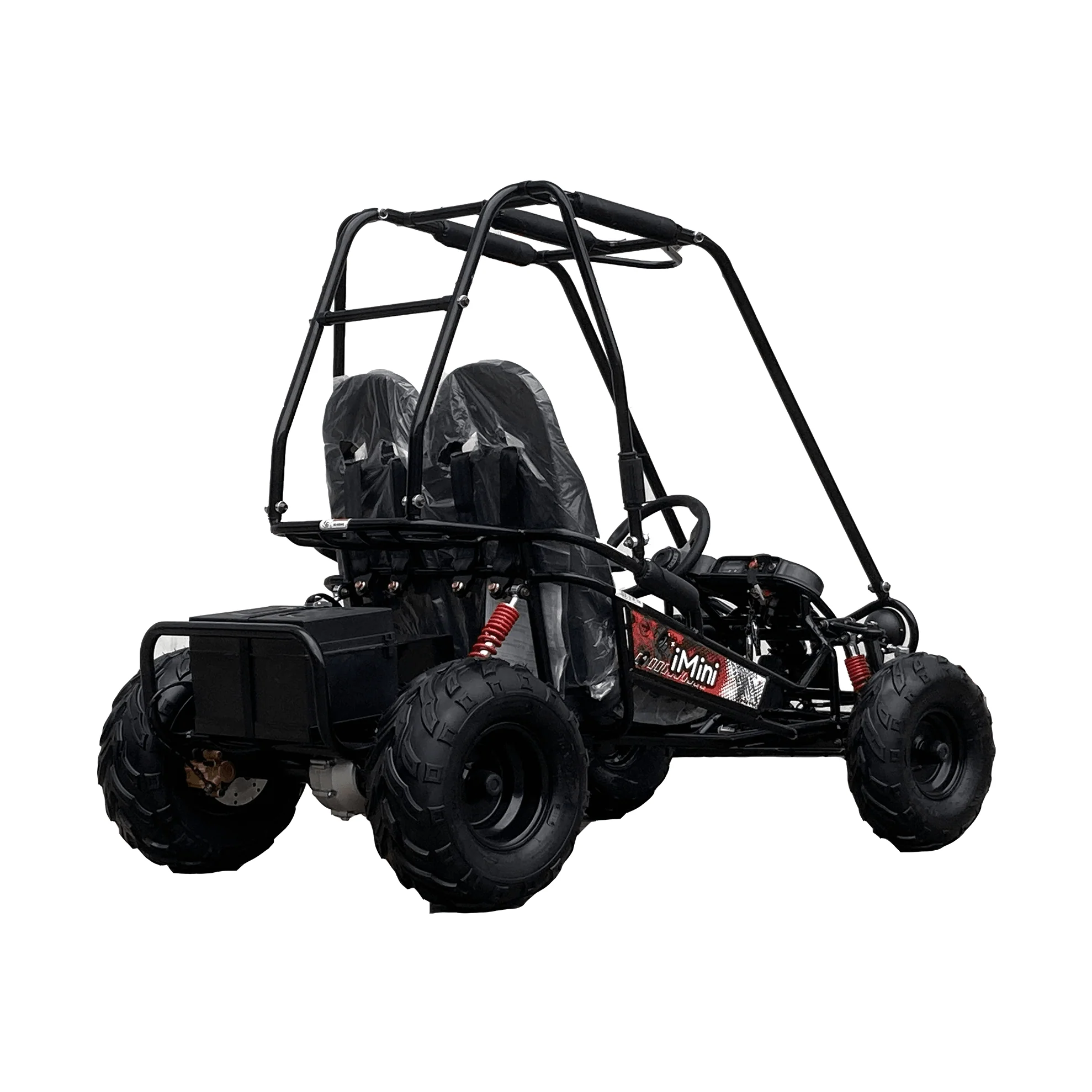

TrailMaster is excited to introduce the iMini, the electric version of our best-selling Mini XRX/R+.

This model keeps the same physical dimensions as the Mini XRX/R+.

It is powered by a 48V 1.2KW electric motor and a 48V 20Ah battery.

This fully automatic go-kart with reverse offers two forward driving modes.

"H" mode has a top speed of 18 mph, while "L" mode has a top speed of 12 mph.

On a full charge, the TrailMaster iMini Electric Go Kart can travel up to 30 miles.

Designed with safety and performance in mind, the imini features a digital monitor.

The driver must hit the brake before engaging the throttle pedal for added safety.

It also delivers strong low-end torque and can climb slopes up to 15 degrees.

The 5-point safety harness seatbelt, remote start/kill, and padding over the roll cage help ensure a secure ride.

Additional features include an LED headlight, horn, and large tires for superior traction.

Front tires are 145/70-6, and rear tires are 16x8-7.

The rack and pinion steering wheel and hydraulic disc brake provide precise control and quick stops.

The adjustable sports seat has a pedal-to-seat back range of 30 to 35 inches.

It accommodates children aged 4 to 12 years.

The trailmaster iMini combines the familiar features of the Mini XRX/R+ with the eco-friendly benefits of electric power.

It offers a thrilling and safe ride for young adventurers.

Key features of the TrailMaster iMini Electric Go Kart:

• Powered by 48V, 20A battery
• Digital monitor
• Fully automatic with reverse
• Driver has to hit brake in order to engage throttle pedal for safety
• Offers two driving mode: with “H” mode top speed only 18M/h; with “L” mode top speed 12M/h
• Strong low-end torque and able to climb 15 degrees slope
• Driving range up to 30miles
• 5-Point safety harness seatbelt
• Remote Start/Kill
• LED headlight
• Horn
• Big tires: F / R: 145/70-6 / 16x8-7
• Rack and pinion steering wheel
• Hydraulic disc brake
• Padding over roll cage
• Adjustable sports seat: pedal to seat back adjustable from 30 to 35 inches
• Age group: 4 to 12 yrs

SPECIFICATIONS

Battery Information
Battery:	Lead Acid Battery
Nominal Voltage:	48V
Rated Capacity:	20Ah
Charging Temp Range:	32 °F to 104 °F
Storage Temp Range:	5 °F to 104 °F
Charging Time:	6-8h
Range:	30 miles max depending on weight, speed and driving conditions.
Battery model:	6-DZF-12
Battery Warranty:	6 months Limited
Electric Motor Information
Service Voltage:	48V
Rated Power:	1.2KW
Rated Speed:	3800RPM
Rated Current:	14A
Max Torque:	>=8Nm
Current limit:	30A
General Information
Suspension, F / R:	Double A-arm / Double Oil Damped Shock
Brakes:	Rear Hydraulic Disc brake
Tires, F / R:	145/70-6 / 16x8-7
Gross Weight:	273 lbs
Net Weight:	225 lbs
Max Load:	330 lbs
Driving Mode:	R-N-D
Max speed:	12mph on “L” mode; 18mph on “H” mode
Climbing ability:	15 degrees
Dimension Information
Wheelbase:	42 inches
OA L x W x H:	67x44x51.2 inches
Height to Seat:	10.2 inches
Min Ground Clearance	2.8 inches
Pedal to seat back:	30 to 35 inches
Crate size:	60X30X21 inches
