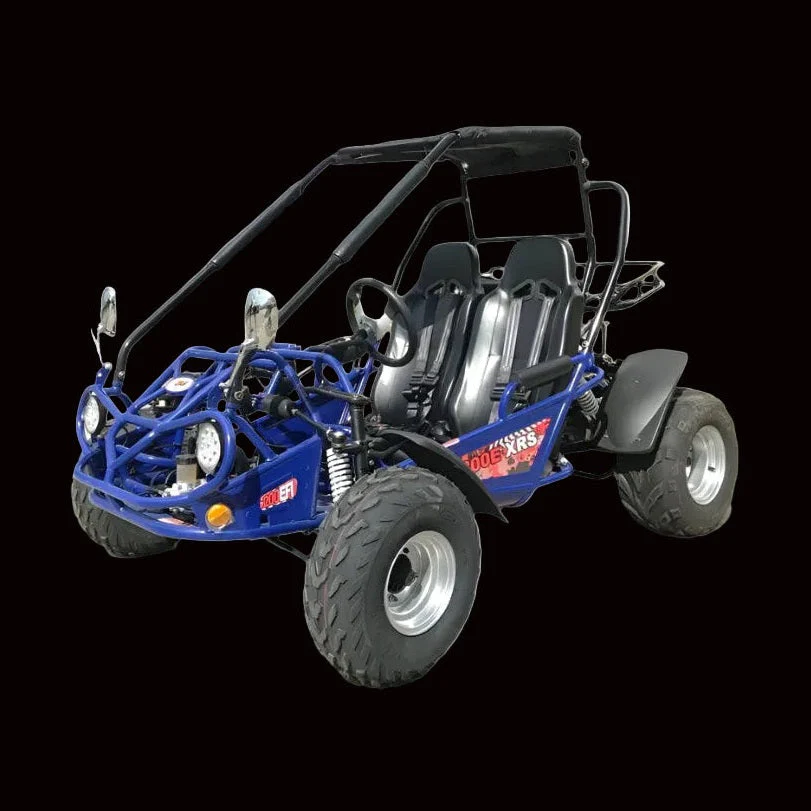

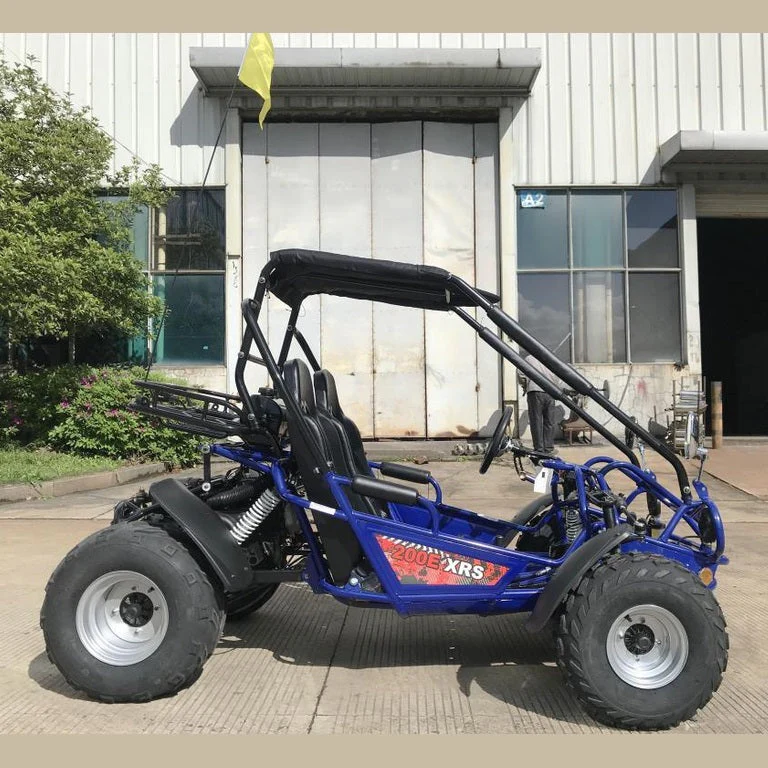

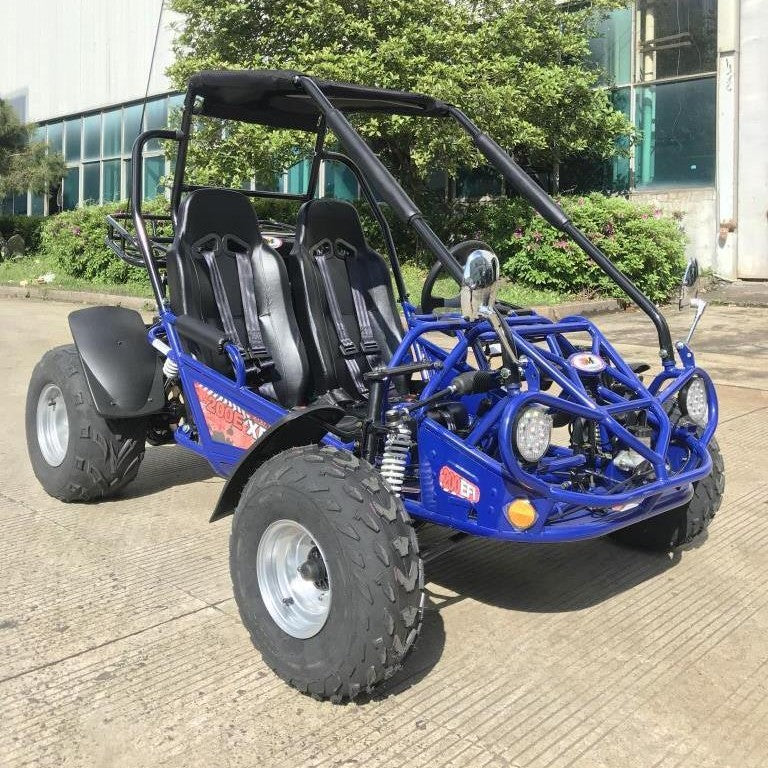

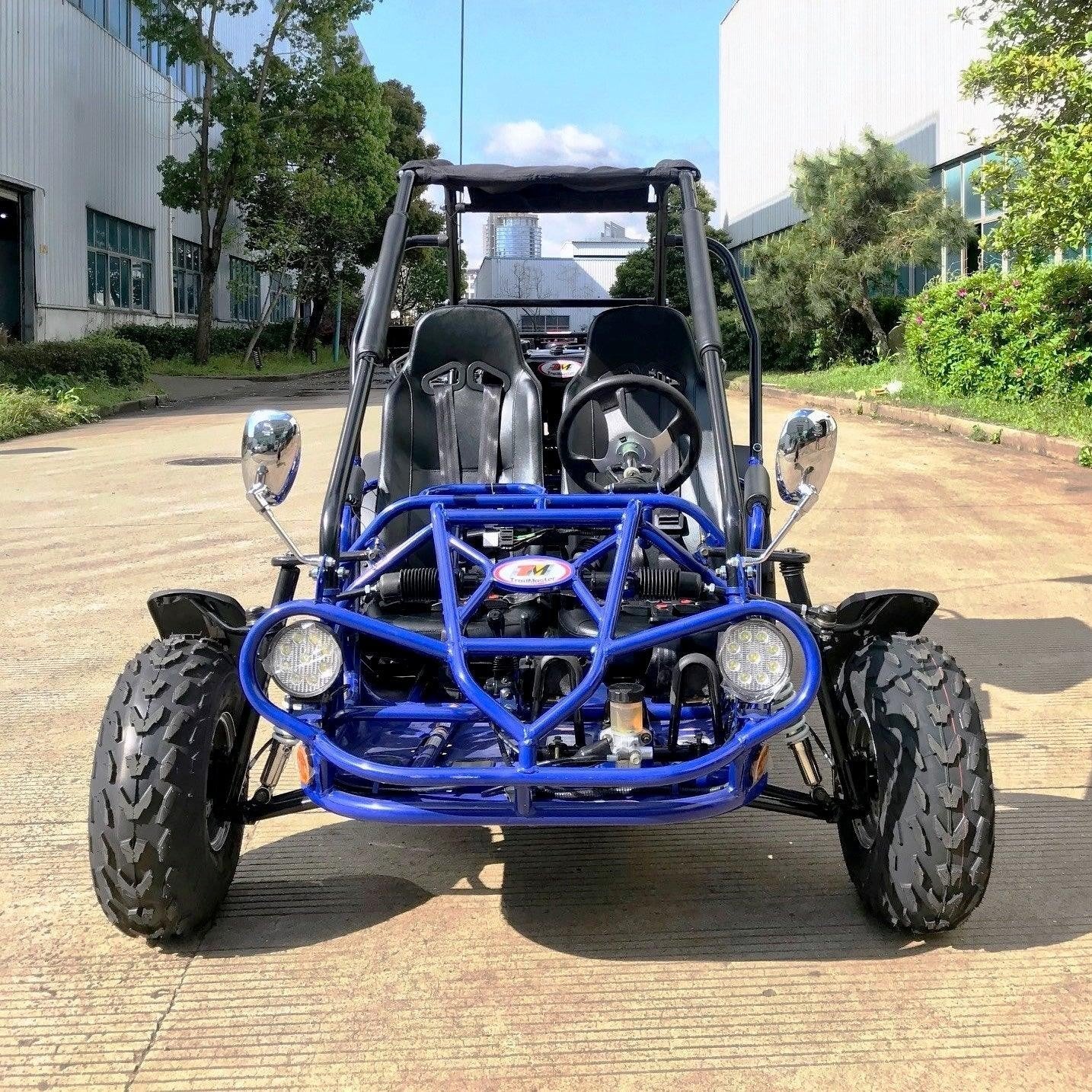

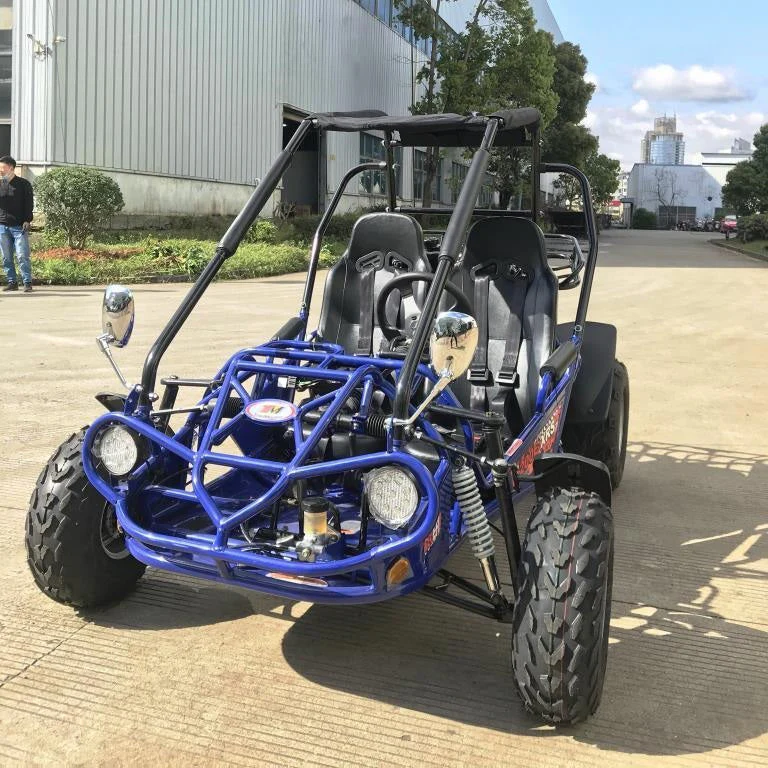

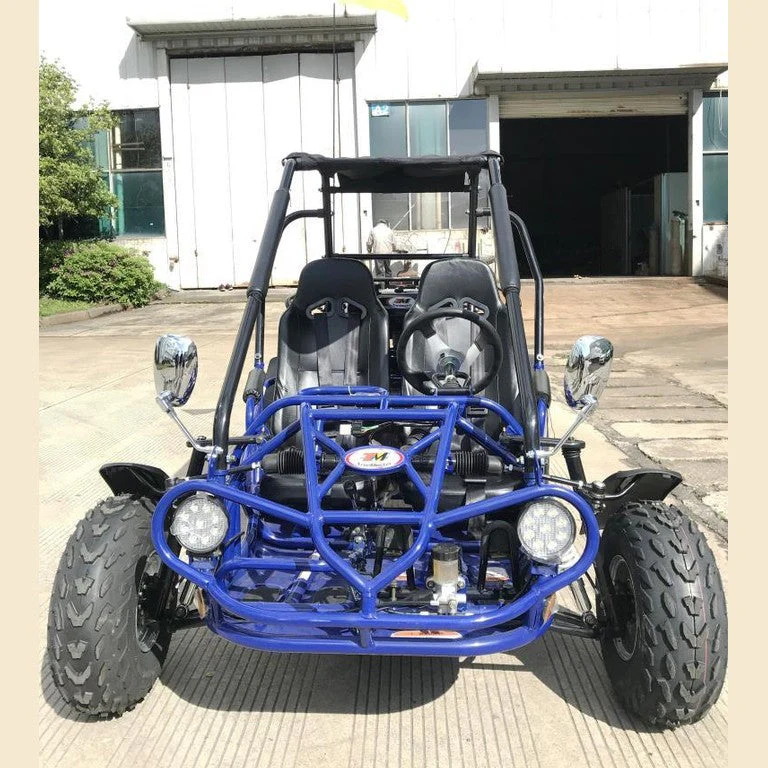

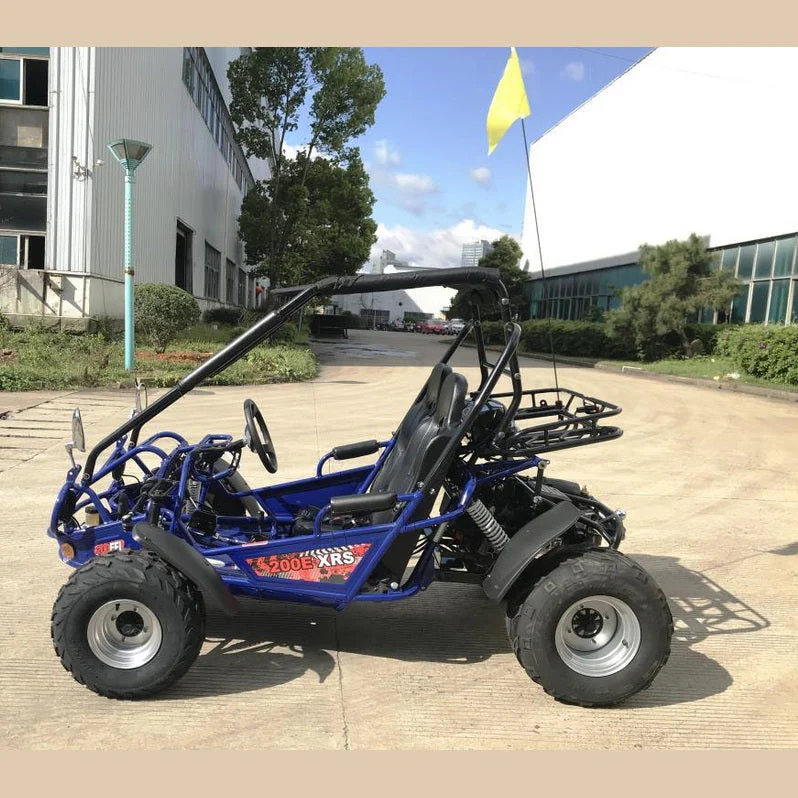

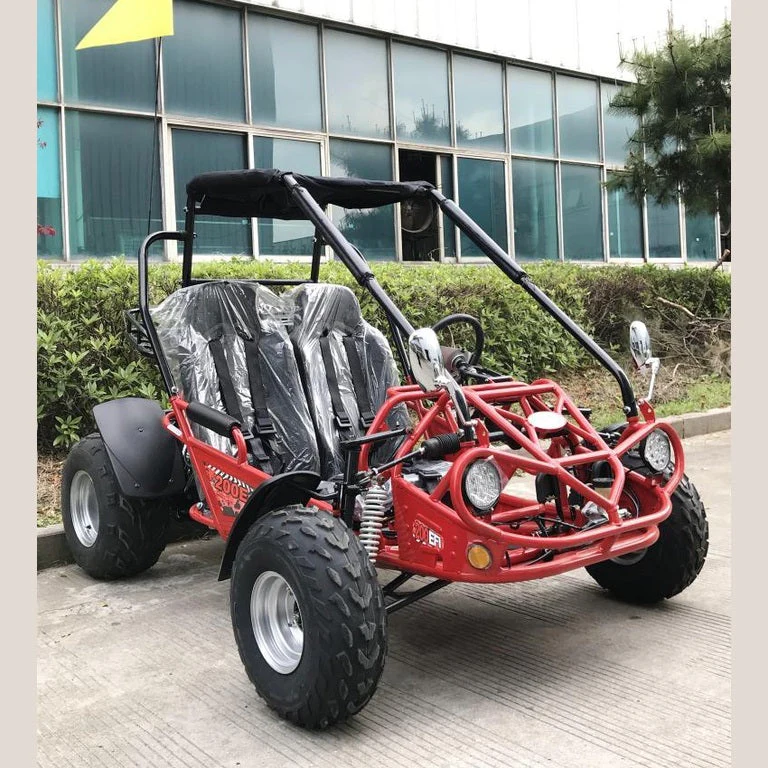

The TrailMaster 200E XRS is a significant upgrade from our best-selling 150XRS model, designed for adult riders seeking more power and convenience. Featuring a larger 169cc GY6 engine with electronic fuel injection (EFI), the 200E XRS ensures reliable starts in cold weather and at high altitudes, eliminating the hassle of carburetor maintenance after periods of inactivity.

This model is packed with premium features, including a stainless steel performance muffler for enhanced engine output, rack-and-pinion steering with an adjustable steering wheel for precise control, and side mirrors for added safety. The bikini sunshade top offers protection from the sun, making it perfect for sunny trail rides.

Comfort and safety are top priorities with bucket seats and five-point safety harnesses. The driver's seat is adjustable, ranging from 36 to 43 inches from the seat back to the pedal, accommodating drivers of various sizes. The kart boasts sturdy steel wheels with 20X7-8 front and 21X10-10 rear tires, riding on adjustable heavy-duty shock absorbers and a 4-point rear swing arm, ensuring superior off-road handling.

For enhanced safety, the 200E XRS is equipped with front and rear hydraulic disc brakes, providing powerful stopping capabilities. Additional features include a parking brake, high and low beam headlights, all-around fenders, a trailer hitch, and a large utility rack. The TrailMaster 200E XRS is the perfect combination of power, performance, and convenience for any off-road adventure.

Key features:

• Fuel injection system operates under any weather and at any altitude
• Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
• Top Speed over 40 M/H
• Five-point safety seatbelt
• Electric start with kill switch
• Fully automatic with reverse, high performance GY6 engine with internal reverse set up

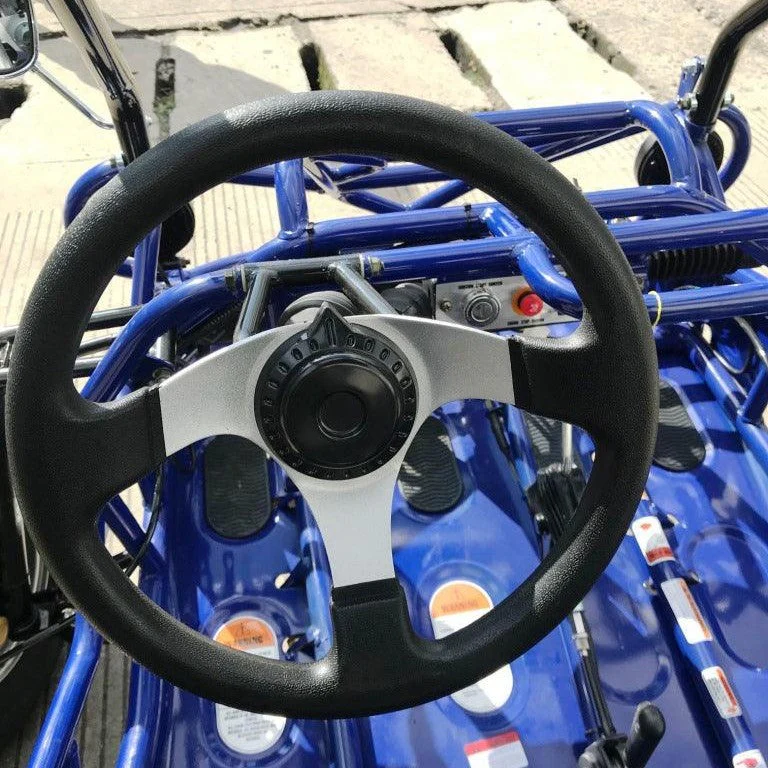

• Adjustable steering wheel
• Large tires with 20X7-8 in the front and 21X10-10 in the back, steel wheel
• LED head light
• Bikini sunshade top
• Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• 4-point rear swing arm
• Parking brake
• 4-wheel fenders
• Trailer hitch
• Large rear utility rack
• Large gas tank

SPECIFICATIONS

Certification:	EPA certificated
Engine Type:	4-stroke, single cylinder, air cooled
Displacement:	168.9cc
Max Horsepower:	11.1hp/8000rpm
Max. Torque:	8.1 lb ft/6000rpm
Bore Stroke:	2.4x2.28 inches
Max speed:	43 mph
Climbing Ability:	18 degrees
Ignition:	ECU
Starting System:	Electric
Battery:	12V 10Ah
Engine Oil:	SAE 15W-40
Clutch:	Automatic CTV with reverse
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension F/R:	Double A-arm / swing-arm
Brakes, F/R:	Hydraulic brake, Disc
Tires F/R:	20x7-8 / 21x10-10
Wheel:	Steel
Fuel capacity:	2.25 gal
Gross Weight:	573 lbs
Net Weight:	485 lbs
Max Load:	500 lbs
Wheelbase:	59 inches
OA L x W x H:	85x53.1x57.5 inches
Height to Seat:	13.8 inches
Min Ground Clearance	6.7 inches
Pedal to seat back distance:	36” to 43”

Configurations And Specifications Subject To Change Without Notice. “BV
POWERSPORTS, LLC”
