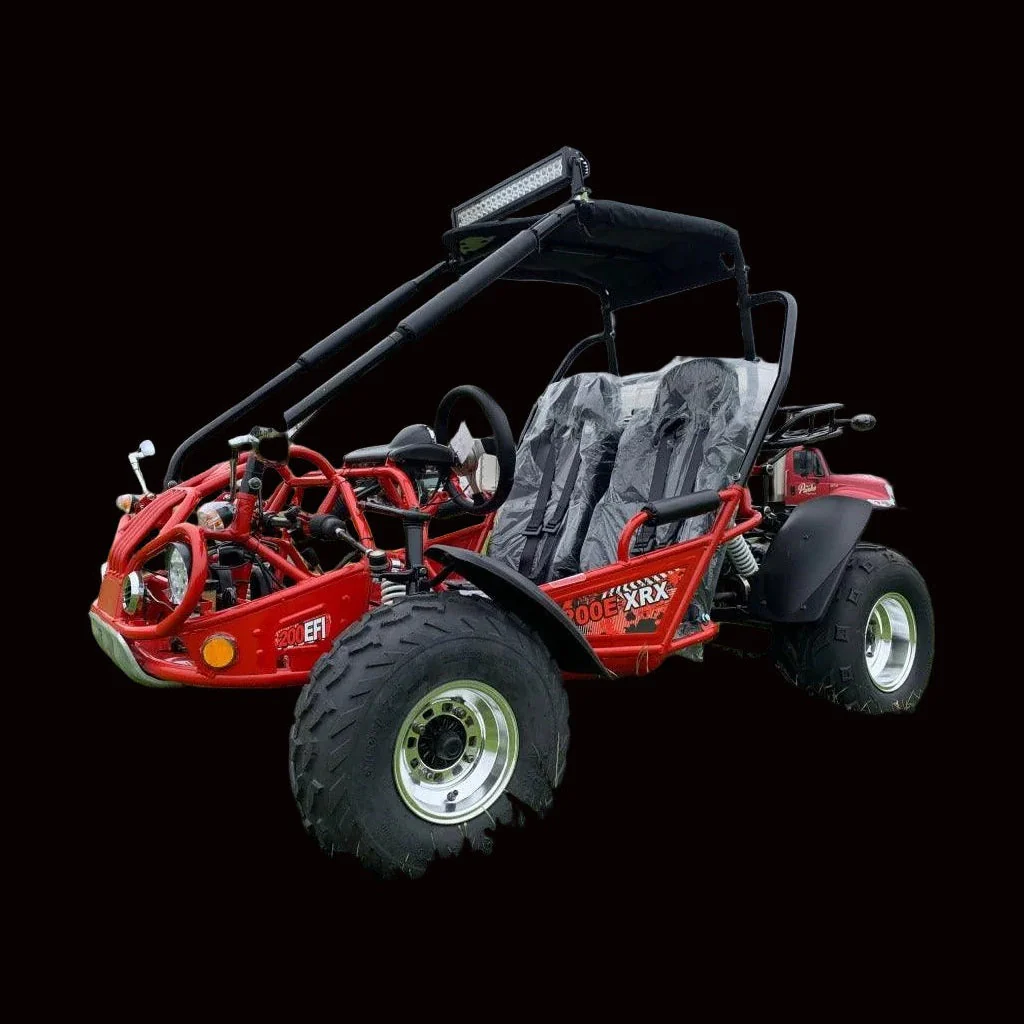

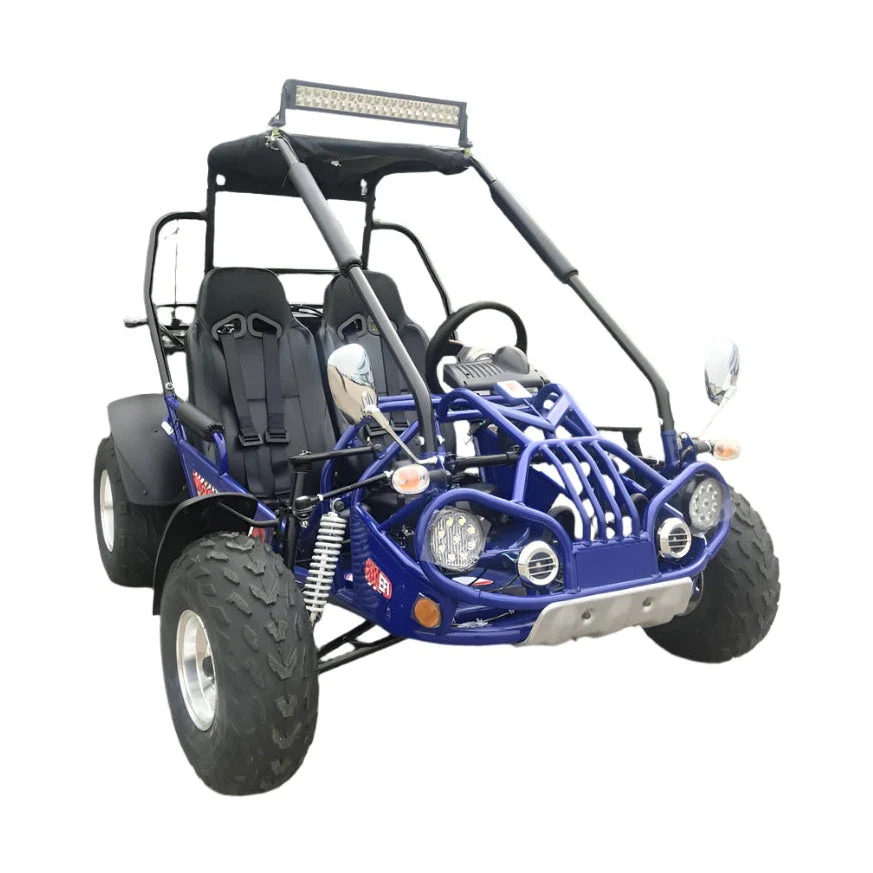

The TrailMaster 200E XRX is an enhanced version of our popular 150XRX, now boasting a more powerful 169cc GY6 engine with EFI. This upgrade means easy starts in cold weather or high altitudes, and no more carburetor issues after periods of inactivity.

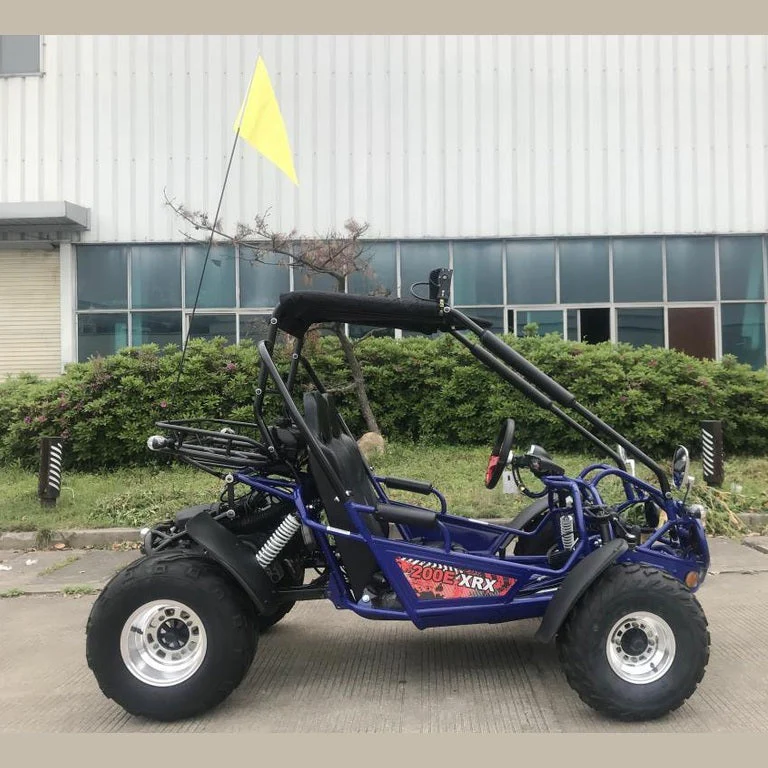

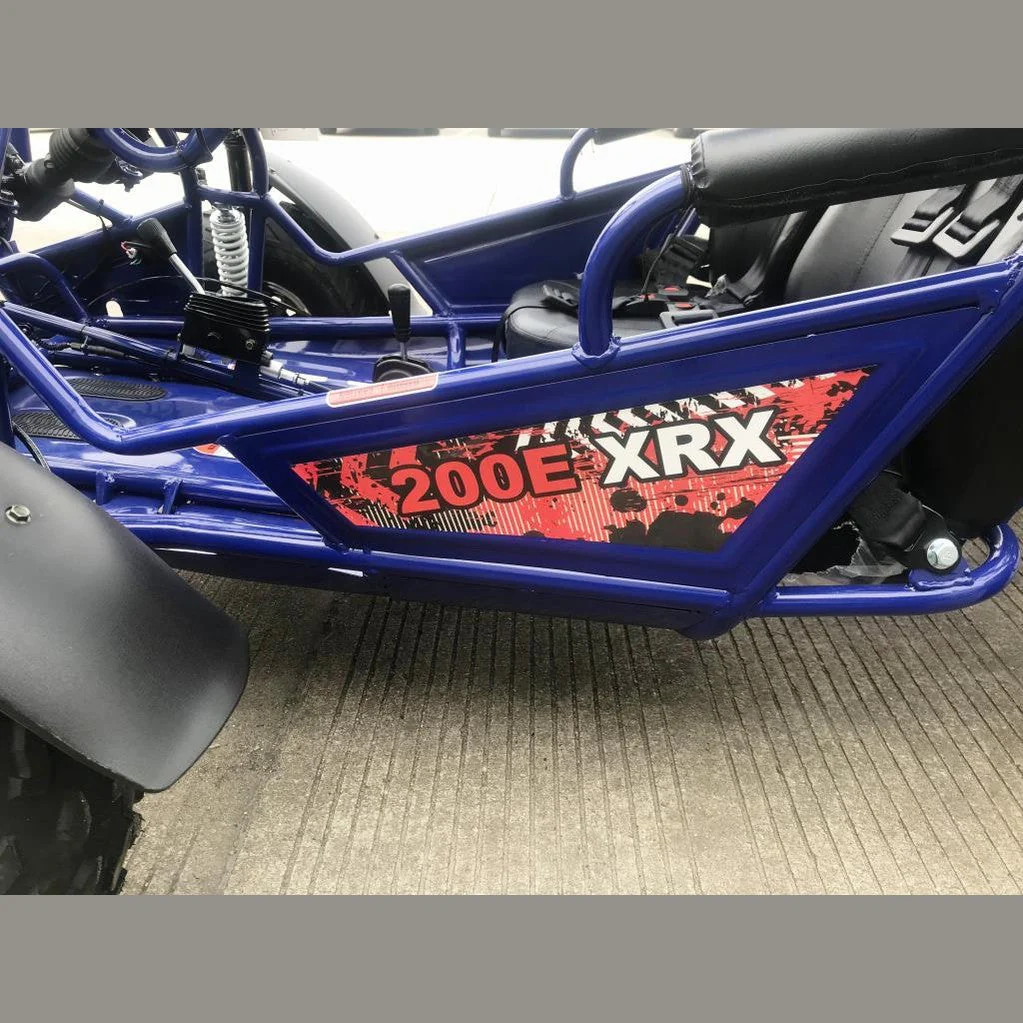

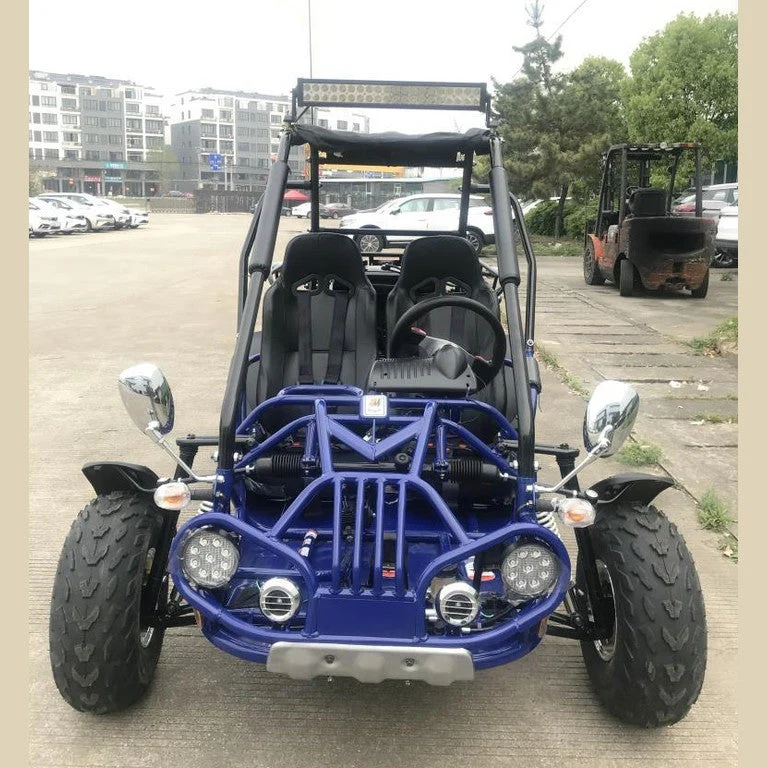

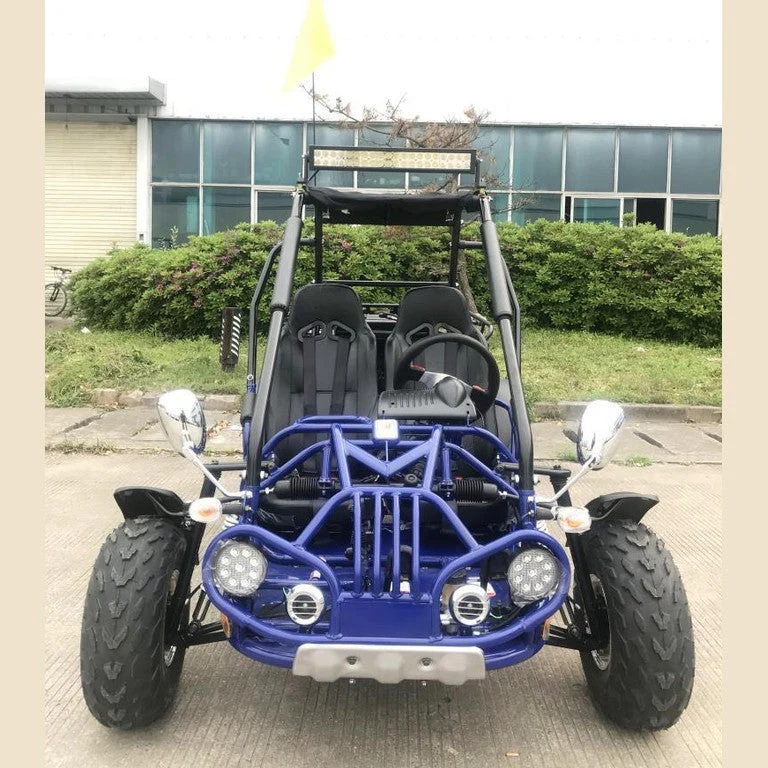

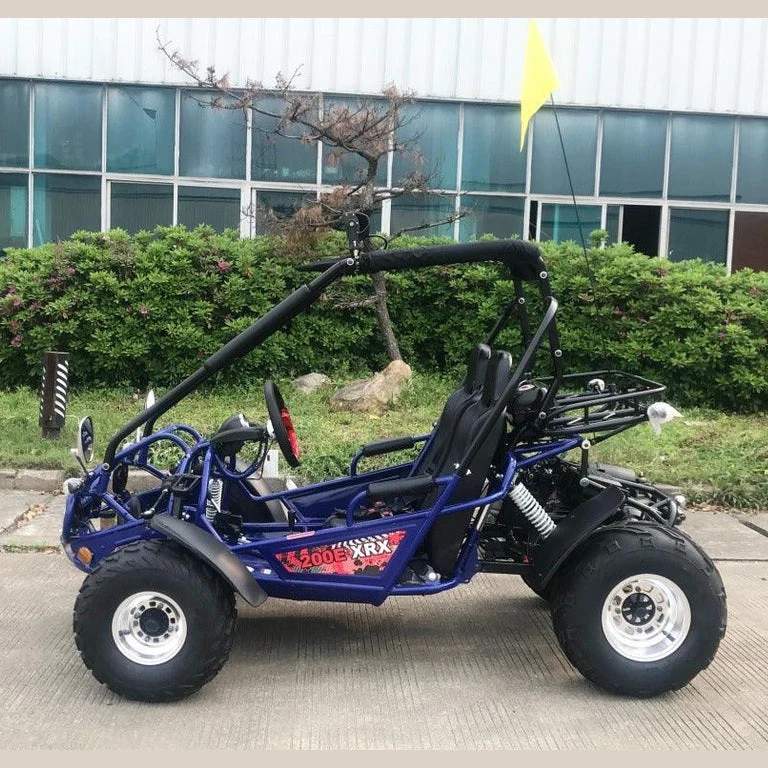

The 200E XRX is designed to tackle the toughest terrain with premium features like polished aluminum wheels, a digital speedometer/odometer, LED headlights, an LED light bar, and a bikini sunshade top. Beneath its stylish exterior lies a rugged, tubular steel frame with a top brush guard, side rails, and an enclosed belly pan, ready to withstand harsh off-roading conditions.

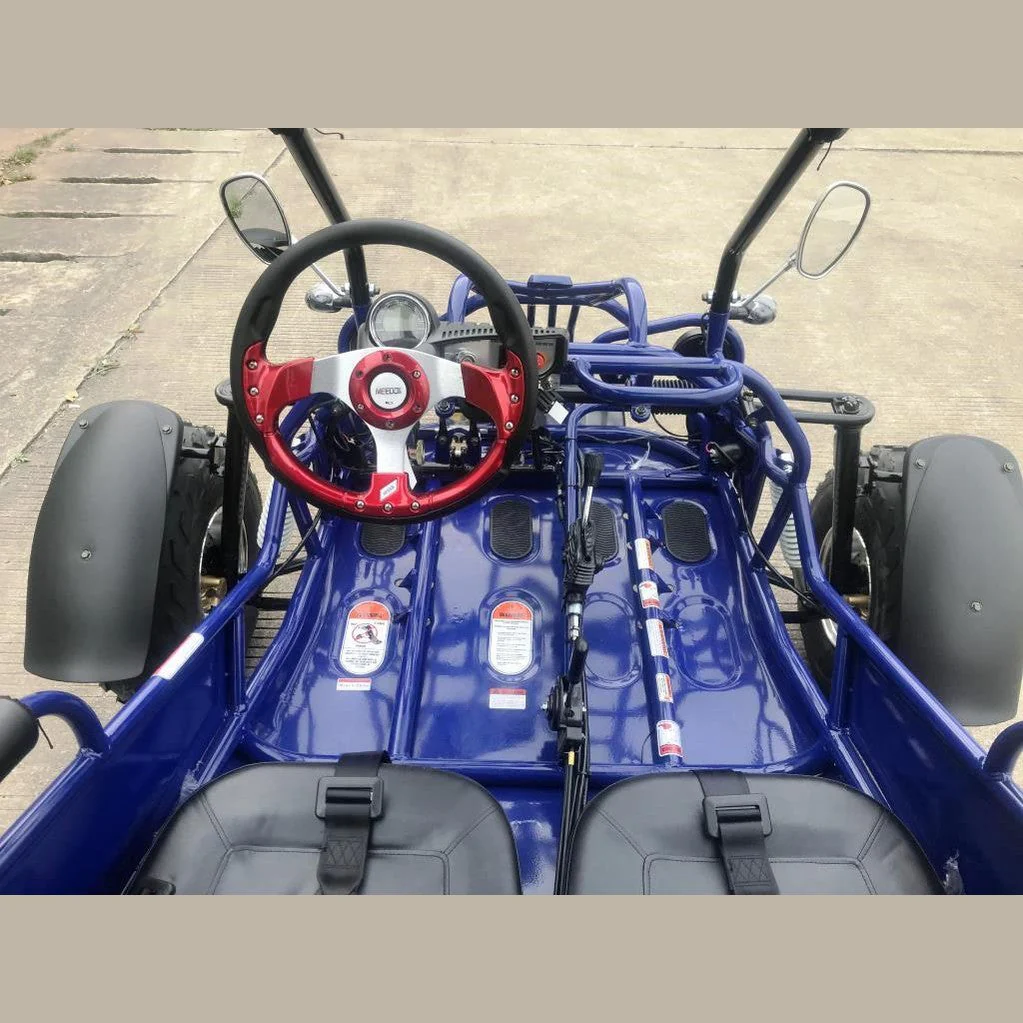

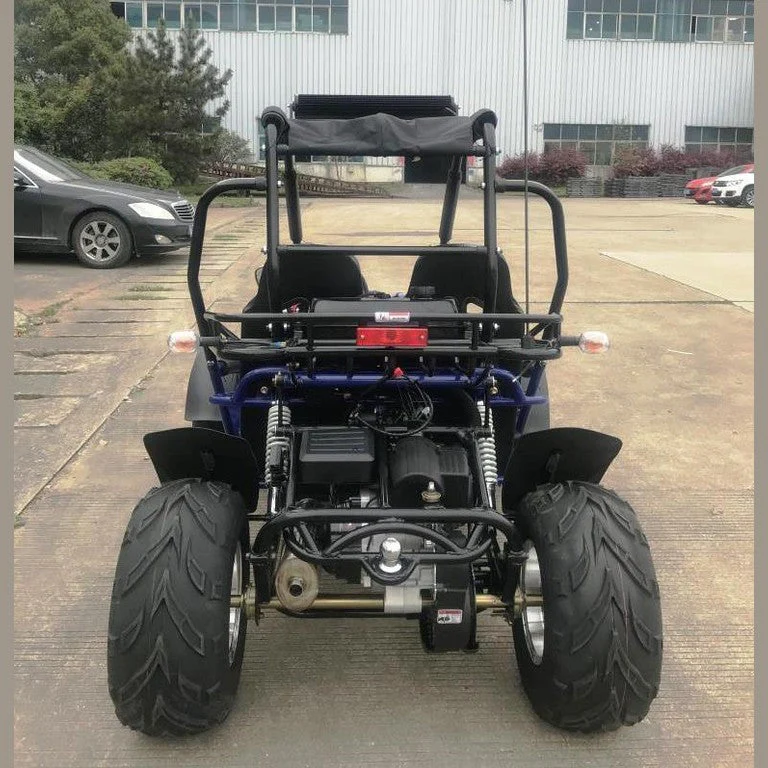

With ample horsepower, this go-kart can haul loads on the rear utility rack or pull light-duty trailers using the included ball hitch. Driving is both effortless and fun thanks to its electric start, rack-and-pinion steering, reverse shifting, dash-mounted controls, and dual sport bucket seats with 5-point harnesses. The driver’s seat adjusts from 36 to 43 inches to the pedals, and the tilt steering column adapts to your preferred driving position.

Safety features abound, including center and side mirrors, front and rear hydraulic disc brakes, high/low beam headlights, and turn signals. The dual A-arm front and swing-arm rear suspension system ensures excellent handling and maneuverability, making every ride smooth and controlled.

Built for speed and fun, the TrailMaster 200E XRX is the ultimate go-kart for adventure enthusiasts looking for performance and reliability.

Key features:

• Fuel injection system operates under any weather and at any altitude
• Fully automatic with reverse, high performance 168.9cc GY6 engine with internal F-N-R
• Alloy wheels with 22X7-10 front and 22X10-10 rear aggressive tires
• Top LED light bar

• Digital speedometer/odometer

• Aluminum side mirrors

• Turn signals

• Sporting steering wheel

• Five-point safety harness

• Electric start with kill switch

• Adjustable steering wheel
• Individual sports seats
• LED headlight
• Bikini sunshade top
• Adjustable driver seat: pedal to seat back adjustable from 36” to 43”
• Rack and pinion steering wheel

• Front and rear hydraulic disc brake

• 4-point rear swing arm

• Parking brake

• Trailer hitch

• Large rear utility rack

• Large gas tank


SPECIFICATIONS

Certification:	EPA certificated
Engine Type:	4-stroke, single cylinder, air cooled
Displacement:	168.9cc
Max Horsepower:	11.1hp/8000rpm
Max. Torque:	8.1 lb ft/6000rpm
Bore Stroke:	2.4x2.28 inches
Max speed:	43 mph
Climbing Ability:	18 degrees
Ignition:	ECU
Starting System:	Electric
Battery:	12V 10Ah
Engine Oil:	SAE 15W-40
Clutch:	Automatic CVT with reverse
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension F/R:	Double A-arm / swing-arm
Brakes, F/R:	Both hydraulic brakes, Disc
Tires F/R:	22x7-10 / 22x10-10
Wheel:	Aluminum
Fuel capacity:	2.25 gal
Gross Weight:	661 lbs
Net Weight:	533 lbs
Max Load:	500 lbs.
Wheelbase:	61 inches
OA L x W x H:	85x53.1x57.5 inches
Crate size:	88X48X25 inches
Height to Seat:	13.8 inches
Min Ground Clearance	6.7 inches
Pedal to seat back distance:	36” to 43”

Configurations And Specifications Subject To Change Without Notice. “BV
POWERSPORTS, LLC”
