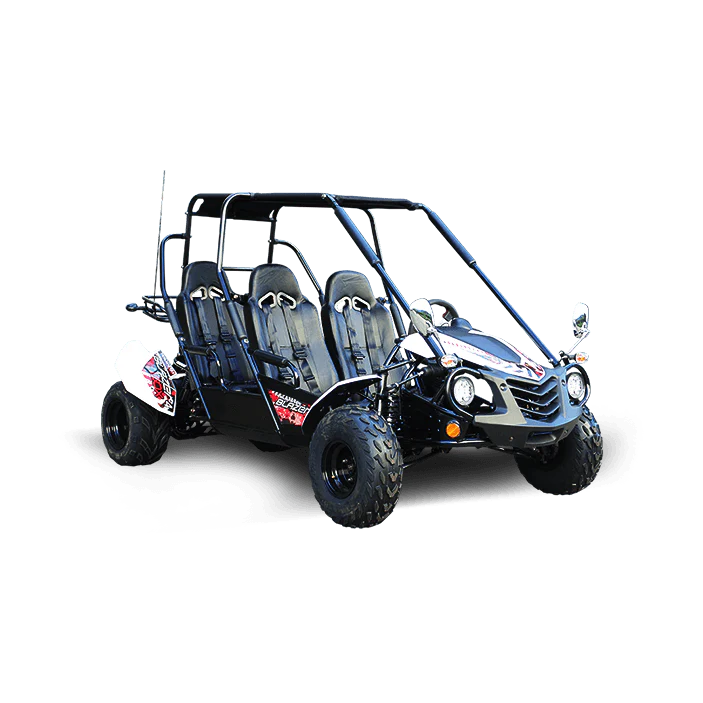

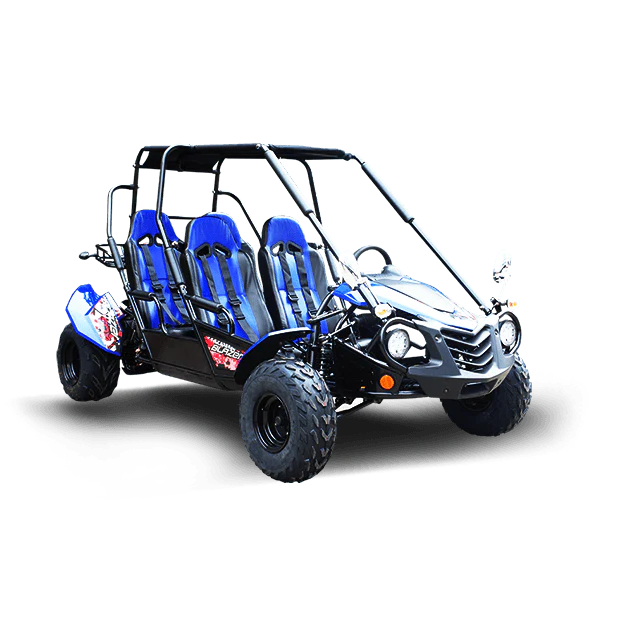

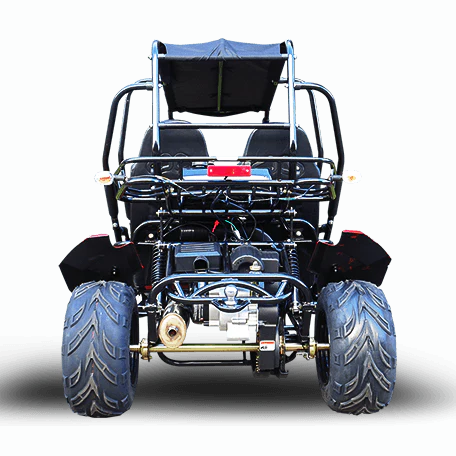

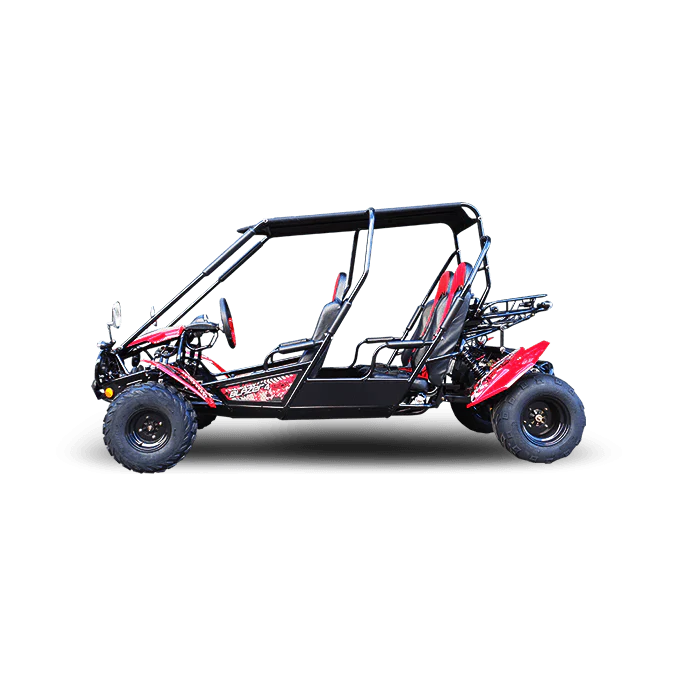

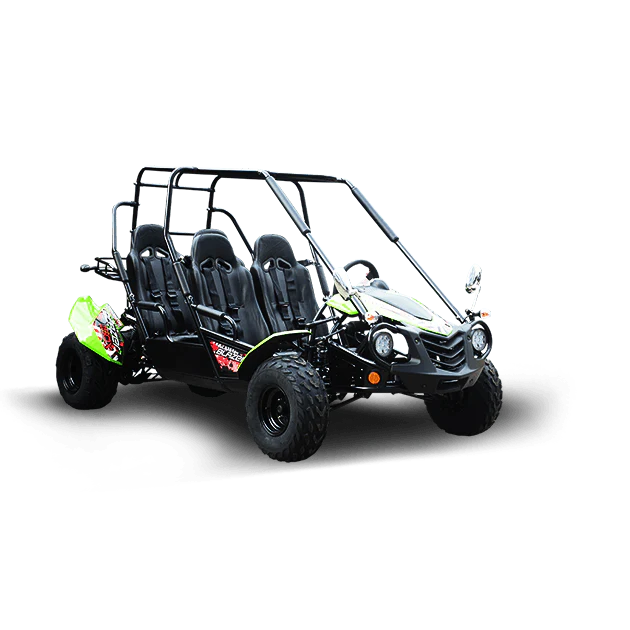

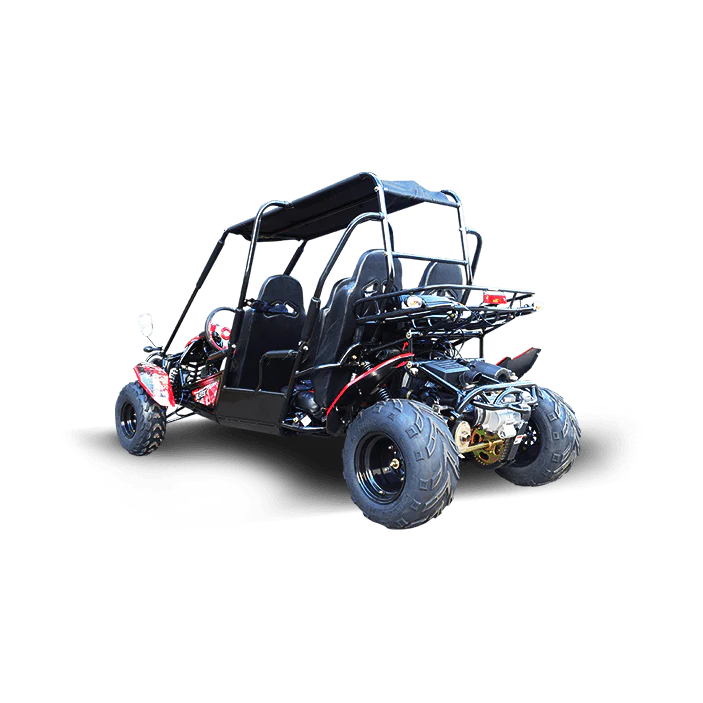

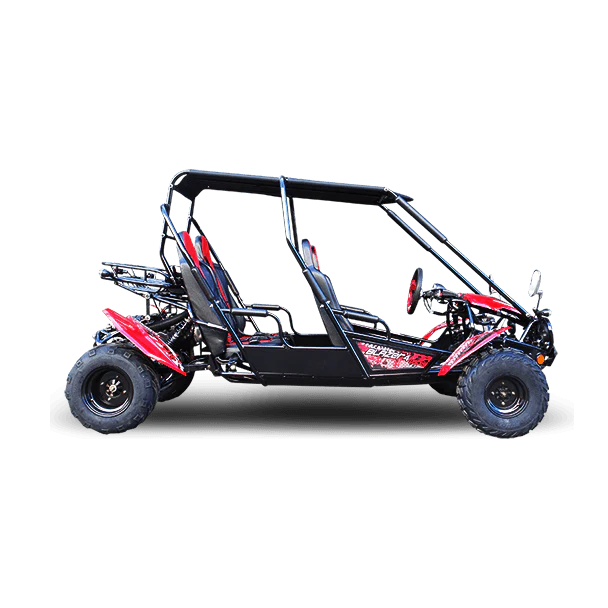

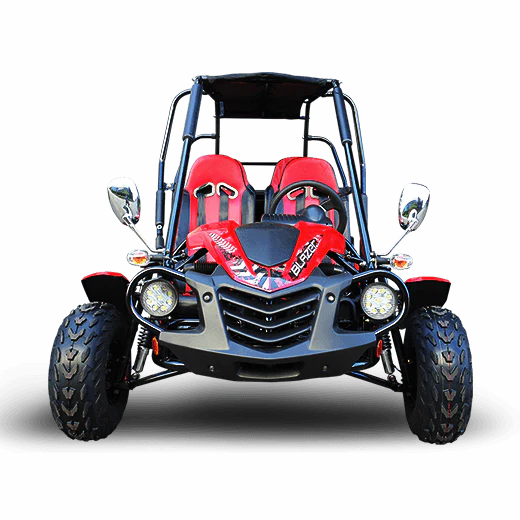

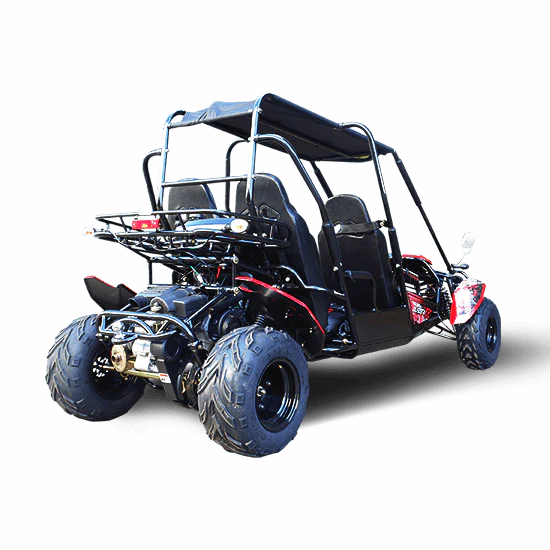

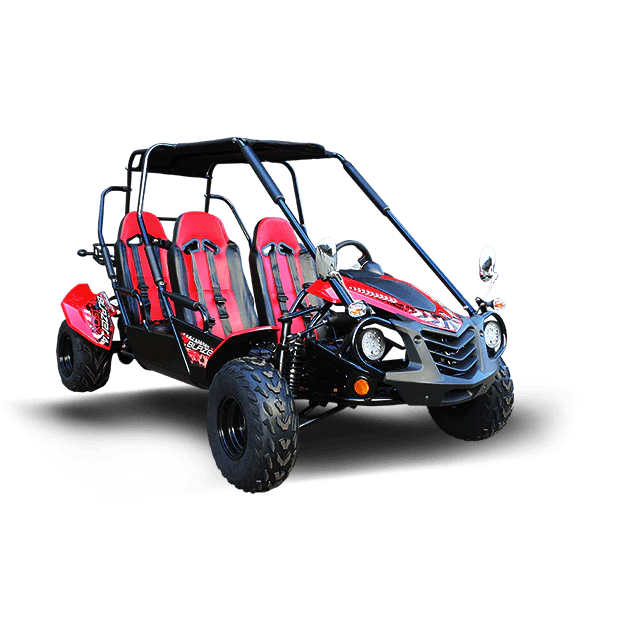

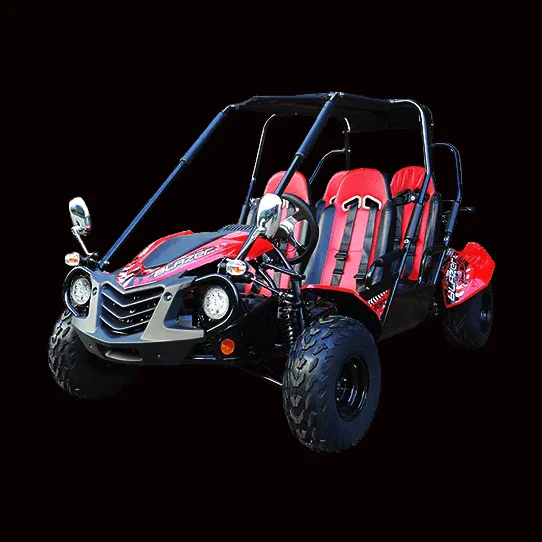

The TrailMaster Blazer4 200X is the ultimate family go-kart, designed to accommodate up to four passengers in style and comfort. This robust go-kart boasts a heavy-duty frame, weighing in at 500 lbs with a maximum capacity of 661 lbs. Its powerful 168.9cc, 11.1hp GY6 engine, paired with an automatic CVT clutch, delivers a top speed of 43 mph and ample low-end torque.

The Blazer4 200X is equipped with a rear utility rack and a ball hitch, making it capable of hauling light loads or pulling light-duty trailers. Driving is a breeze with rack-and-pinion steering, convenient reverse shifting, easily accessible dash-mounted controls, and dual sport bucket seats with 5-point harnesses. The alloy wheels with 22X8-10 front and 22X10-10 rear aggressive tread tires ensure excellent traction on various terrains.

This premium go-kart comes loaded with features, including Nitrogen adjustable front and rear shocks, a digital speedometer/odometer, aluminum side mirrors, turn signals, a sporting steering wheel, LED headlights, and a bikini sunshade top. The adjustable driver seat allows for a pedal-to-seat back distance of 41” to 46”, accommodating passengers up to 6’2” in height. The TrailMaster Blazer4 200X is perfect for family adventures, offering both performance and comfort.

Key Features:

• Stylish design
• Electric start with kill switch
• Fully automatic with reverse, high performance GY6 engine with internal reverse set up
• Heavy duty frame, net weight 728 lbs, max load 800 lbs, adult size 4-seat go kart
• Front seat to rear seat distance 26 inches, fits passengers up to 6’2 in height
• Adjustable front driver and passenger seat: pedal to seat back adjustable from 41” to 46”, fits driver/passenger up to 6’2 in height
• Digital speedometer/odometer
• Aluminum side mirrors
• Turn signals
• 5-Point safety harness seatbelt
• Individual sporting seats
• Polished stainless steel muffler
• Big tires: F / R: 20 x 7-8 / 21 x 10-10
• Bikini sunshade top
• Adjustable heavy duty front and rear shock absorber
• Rack and pinion steering wheel
• Front and rear hydraulic disc brake
• 4-wheel fenders
• Trailer hitch
• Large gas tank
• LED headlight
• Horn
• Padding over roll cage

SPECIFICATIONS

Certification:	EPA certificated
Engine Type:	4-stroke, single cylinder, air cooled
Displacement:	168.9cc
Max Horsepower:	11.1hp/8000rpm
Max. Torque:	8.1 lb ft/6000rpm
Bore Stroke:	2.4x2.28 inches
Climbing Ability:	12 degrees
Min turning radius:	229 inches
Ignition:	CDI
Starting System:	Electric
Battery:	12V 10Ah
Carburetor Brand:	Deli
Engine Oil:	SAE 15W/40
Clutch:	Automatic CVT with reverse
Driveline / Driving wheel:	Chain / Dual wheel drive
Suspension F/R:	Dual A-arm / swing-arm
Brakes, F/R:	Hydraulic brakes, Disc
Tires F/R:	19 x 7-8 / 18 x 9.5-7
Fuel capacity:	2.25 gal
Gross Weight:	650 lbs
Net Weight:	500 lbs
Max Load:	661 lbs
Wheelbase:	88 inches
OA L x W x H:	112x54x59 inches
Height to Seat, F/R:	29 inches/ 32 inches
Distance from F to R seat:	28 inches
Min Ground Clearance	9.87 inches
Pedal to seat back distance:	34-39 inches

Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”
